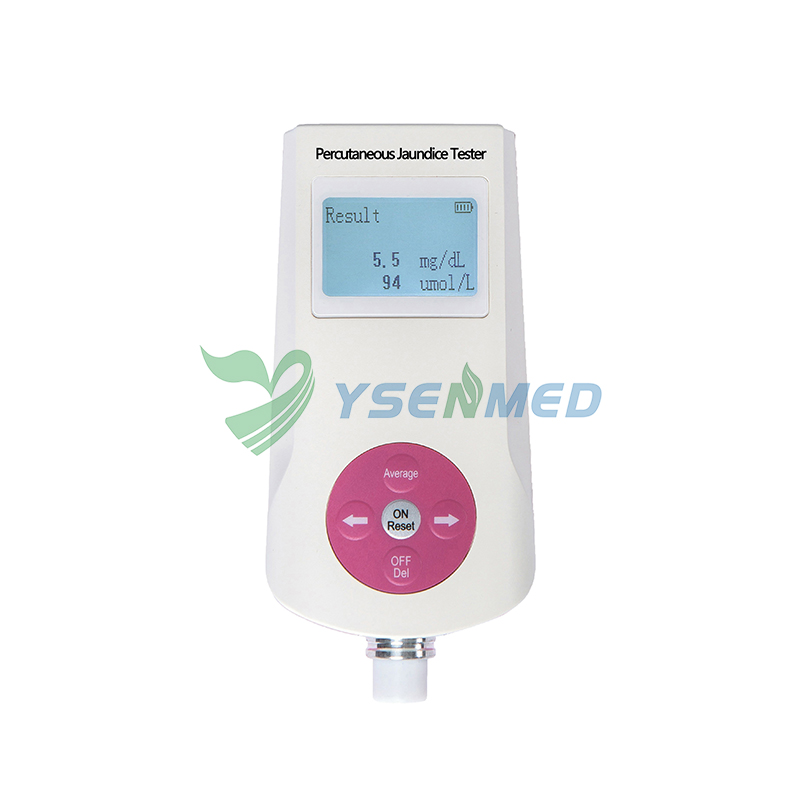

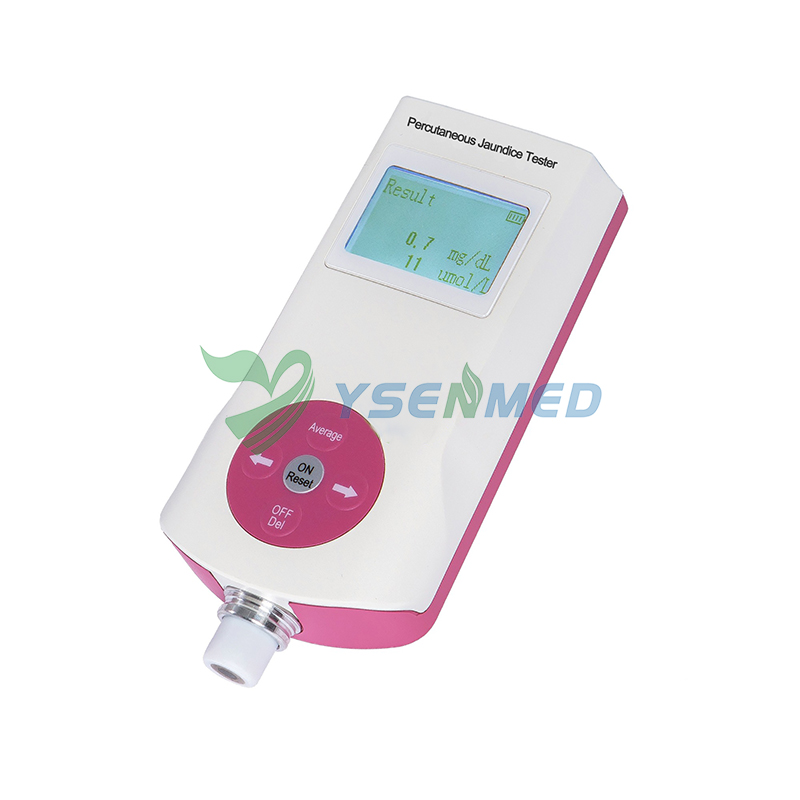

Transcutaneous Iaundice Detector;Percutaneous Jaundice Meter
MODEL:YSNBN-JD01

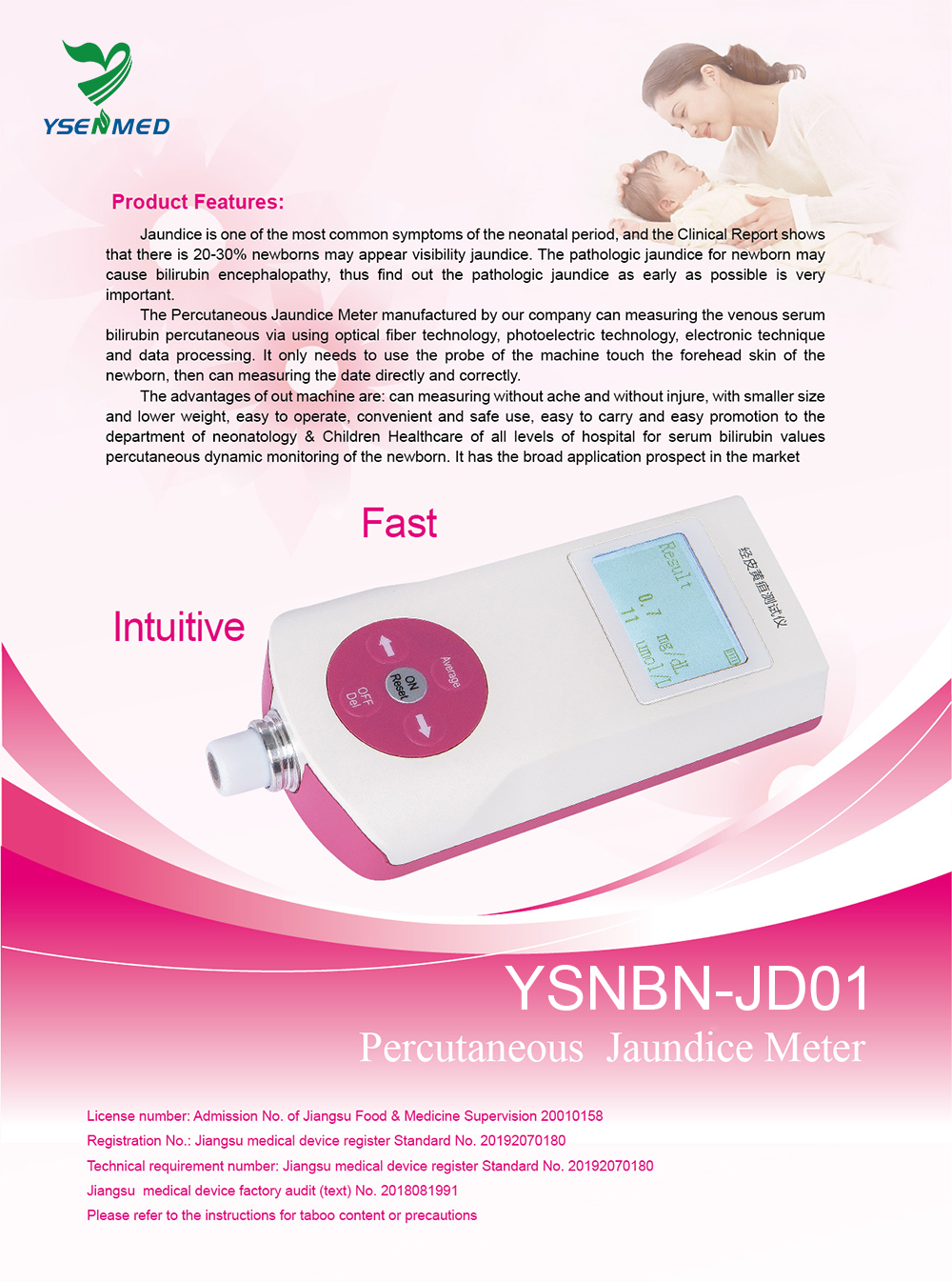

Product Features:
Jaundice is one of the most common symptoms of the neonatal period,and the Clinical Report shows that there is 20-30% newborns may appear visibility jaundice. The pathologic jaundice for newborn may cause bilirubin encephalopathy , thus find out the pathologic jaundice as early as possible is very important.
The Percutaneous JaurdiceMetermarufacturedbyourcompanycanmeasurngthevenous serum
birubinpercutaneousvausngopheafbertechnologyphotoelectnctechnologyelecronictechnoue
and data processing.It only needs to use the probe of the machine touch the forehead skin of the
newborn,then can measuring the date directly and correctly。
The advantages of out machine are can measuring without ache and with out inure , with smaller size and lower weight easy to operate , convenient and safe use , easy to carry and easy promotion to the department of neonatology & Children Healthcare of all levels of hospital for serum bilirubin values percutaneous dynamic monitoring of the newborn.It has the broad application prospect in the market.

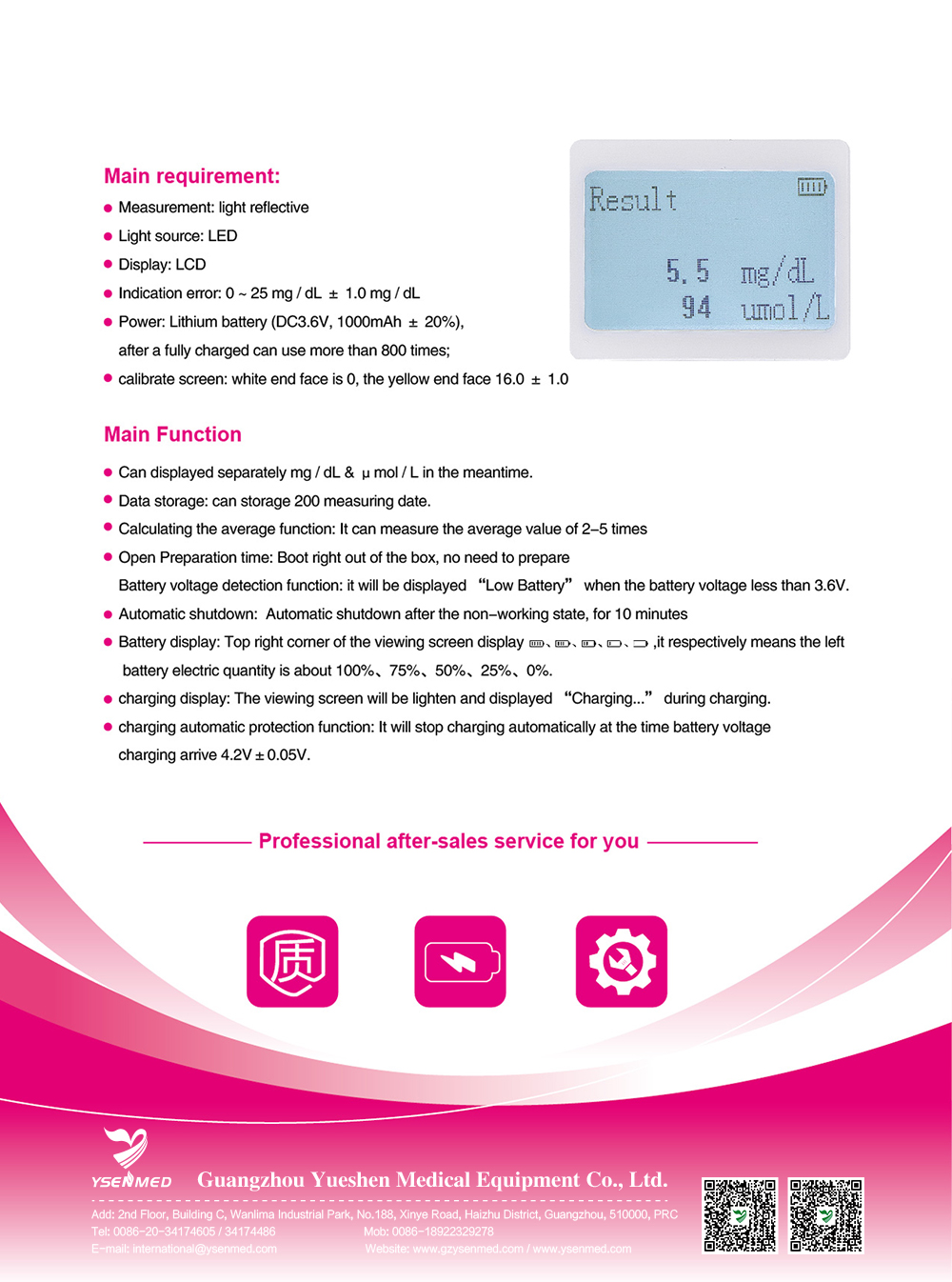

Main requirement:
Measurement: light reflective
Light source: LED
Display: LCD
Indication error: 0~ 25 mg / dL ± 1.0 mg / dL
Power: Lithium battery (DC3.6V,1000mAh±20%),
after a fully charged can use more than 800 times;
calibrate screen: white end face is 0, the yellow end face 16.0 ± 1.0
Main Function:
Can displayed separately mg / dL & μ mol /L in the meantime.
Data storage: can storage 200 measuring date.
Calculating the average function: It can measure the average value of 2-5 times
Open Preparation time: Boot right out of the box, no need to prepare
Battery voltage detection function: it will be displayed“Low Battery"”when the battery voltage less than 3.6V.
Automatic shutdown: Automatic shutdown after the non-working state, for 10 minutes
Battery display: Top right corner of the viewing screen display ,it respectively means the left battery electric quantity is about 100%、75%、50%、25%、0%.
charging display: The viewing screen will be lighten and displayed“Charging..”during charging.
