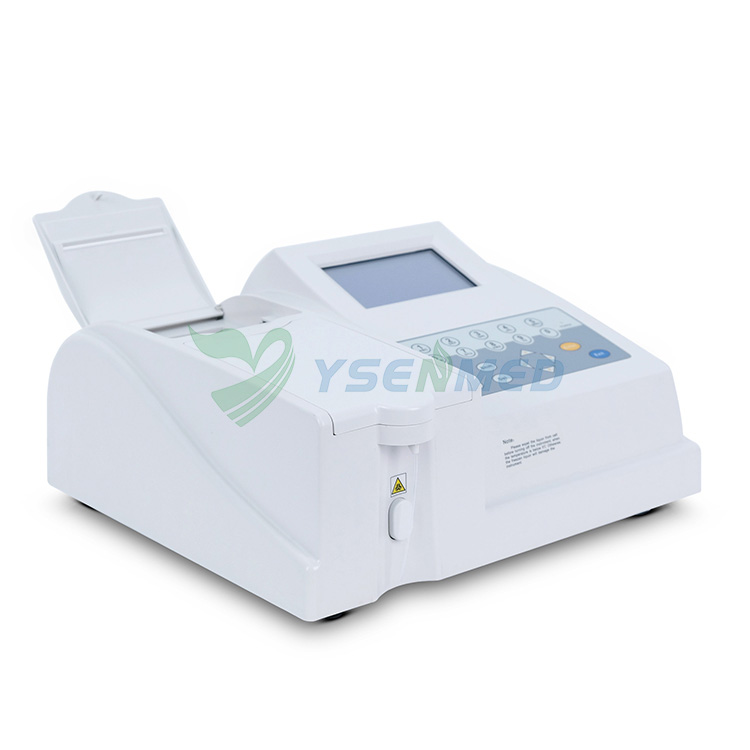

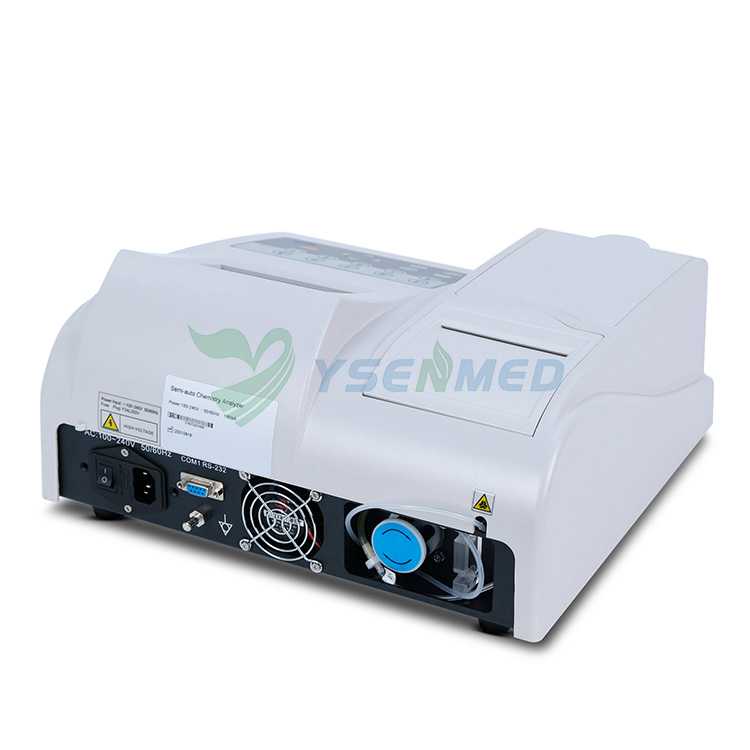

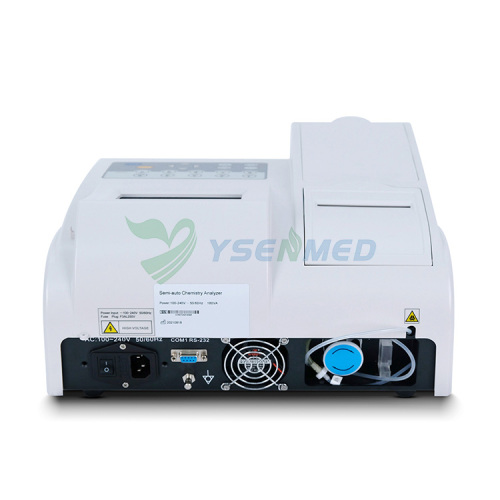

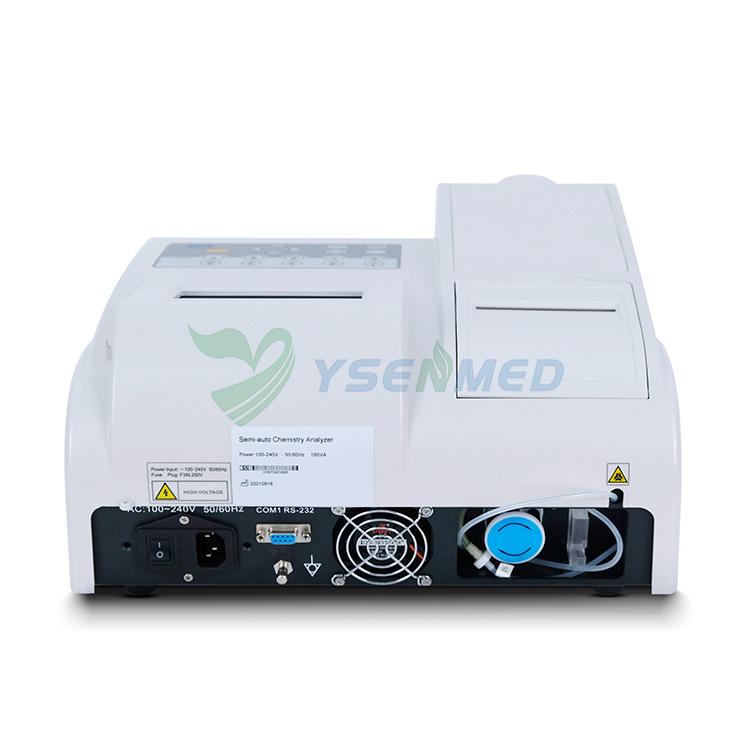

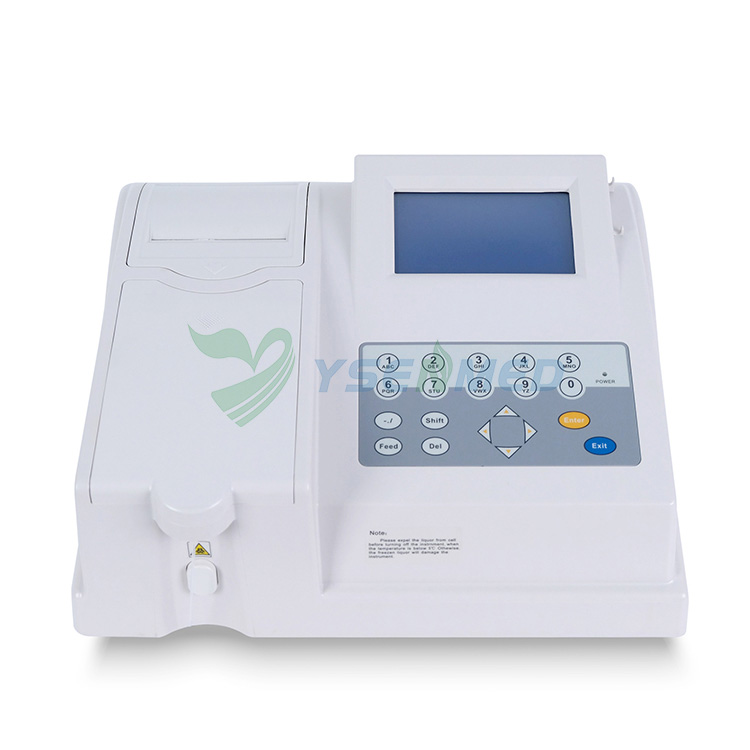

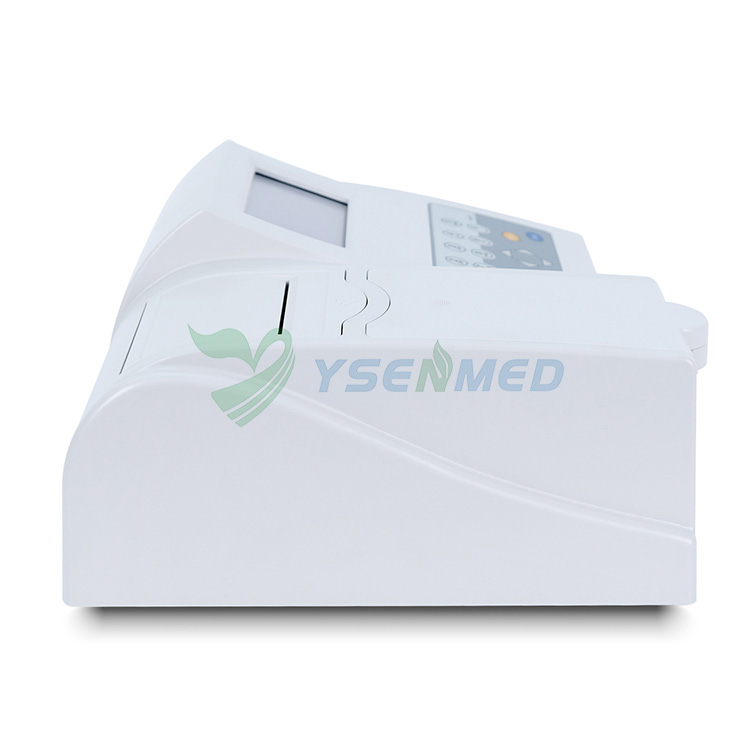

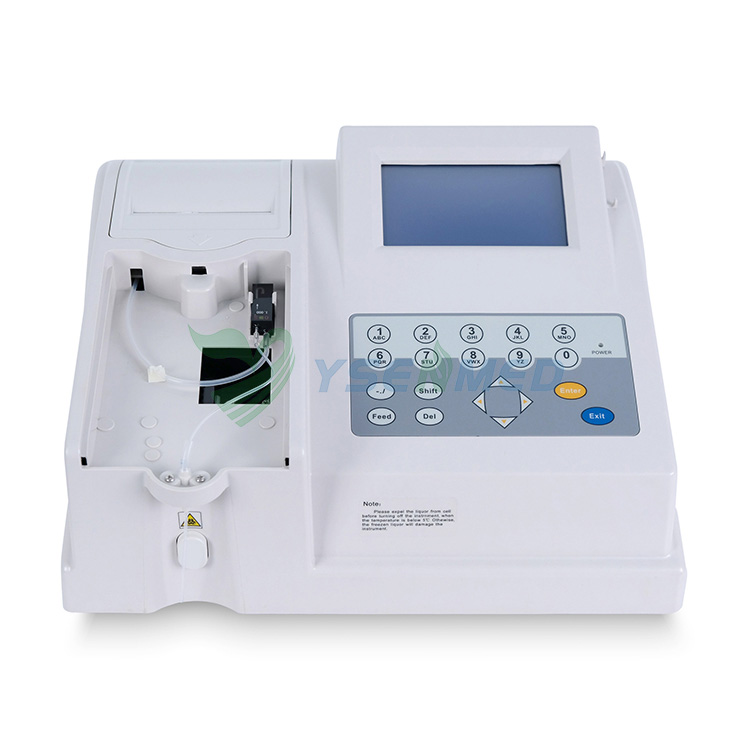

Portable semi-auto biochemical analyzer YSTE-21B

Model: YSTE-21B
YSTE-21B is a semi-automatic chemistry analyzer with large touch-screen and easy-to-use operation software, which is suitable for small labs, clinics.
  • ModelYSTE-21B
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Chemistry Analyzer
    Share:
    Description Get Price Review

    Brief:
    YSTE-21B is a semi-automatic chemistry analyzer with large touch-screen and easy-to-use operation software, which is suitable for small labs, clinics.

    Specifications:
    5-inch touch screen and keypad
    Permanent quartz flowcell
    Long-life halogen lamp
    Reaction curve real time display
    Support LIS
    Flowcell & cuvette modes
    Built-in thermal printer
    Less and easy maintenance

    Reagents:
    Renal function
    Hepatic function
    Cardiac function
    Liquid
    Lipoprotein
    Immuno panel
    Pancreatitis panel

    Detailed Parameters:
      Item Descriptions
    General Principle Colorimetric
    Method End point, Fixed time, Kinetic, Absorbance, Factor
    Parameters Can program more than 200 parameters
    Mode Quatz flowcell,disposable cuvette
    Optical system Photometer Filter
    Lamp halogen lamp, 6V 10W, 2000 hours
    Wavelenghts YSTE-21B: 340、380、405、505、546、578、620nm
    Wavelenght accuracy ±2nm
    Stray light ≤0.5%
    Absorbance repeatility ≤ 1%
    Half-wave width ≤12nm
    Reaction system Measure volume 32 ul
    Heating system Element Peltier
    Temperature  RT,30,37±0.3 ℃
    Specification Storage 15,000 results
    Input YSTE-21B: 5 inch touch screen & keypad
    Output Internal printer
    Interface RS 232
    Printer paper 80×35mm
    Dimension 355mm×330mm×175mm
    Software LIS Support LIS
    Print  Auto print, manual print
    Language English, Portuguese, French, Spanish
    Others Power requirement 100~240 AC, 50/60Hz
    Power ≤180VA
    Work temperature 10-30°C
    Relative humidity ≤ 85%
    Atmospheric pressure 86.0kPa-106.0kPa
    Net weight 5.6 KG
    Performance Carry over ≤1%
    Precision ALT≤5%;TP≤2.5%;UREA≤3.5%
