Medical PCA Syringe Pump YSZS-AJ5805

Model: YSZS-AJ5805
  • ModelYSZS-AJ5805
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Syringe & Infusion Pumps
    Share:
    Description Get Price Review

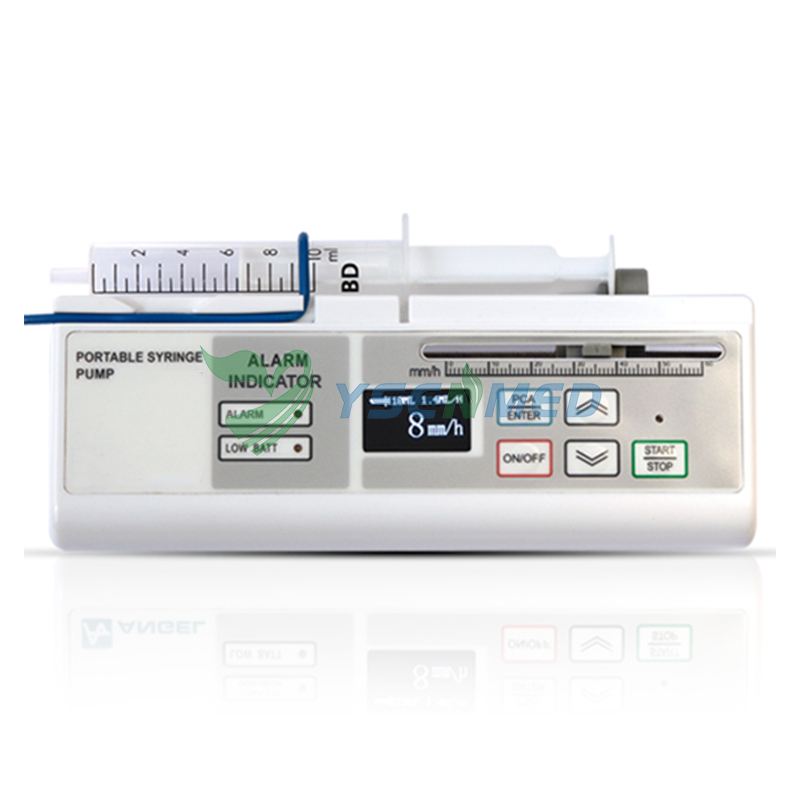

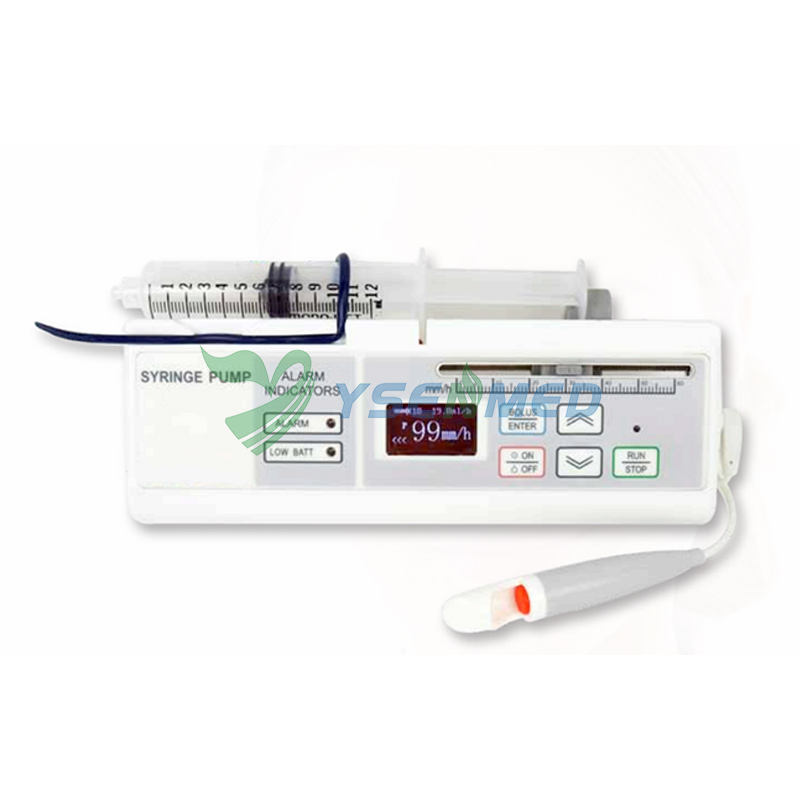

    Medical PCA Syringe Pump


    Model:YSZS-AJ5805

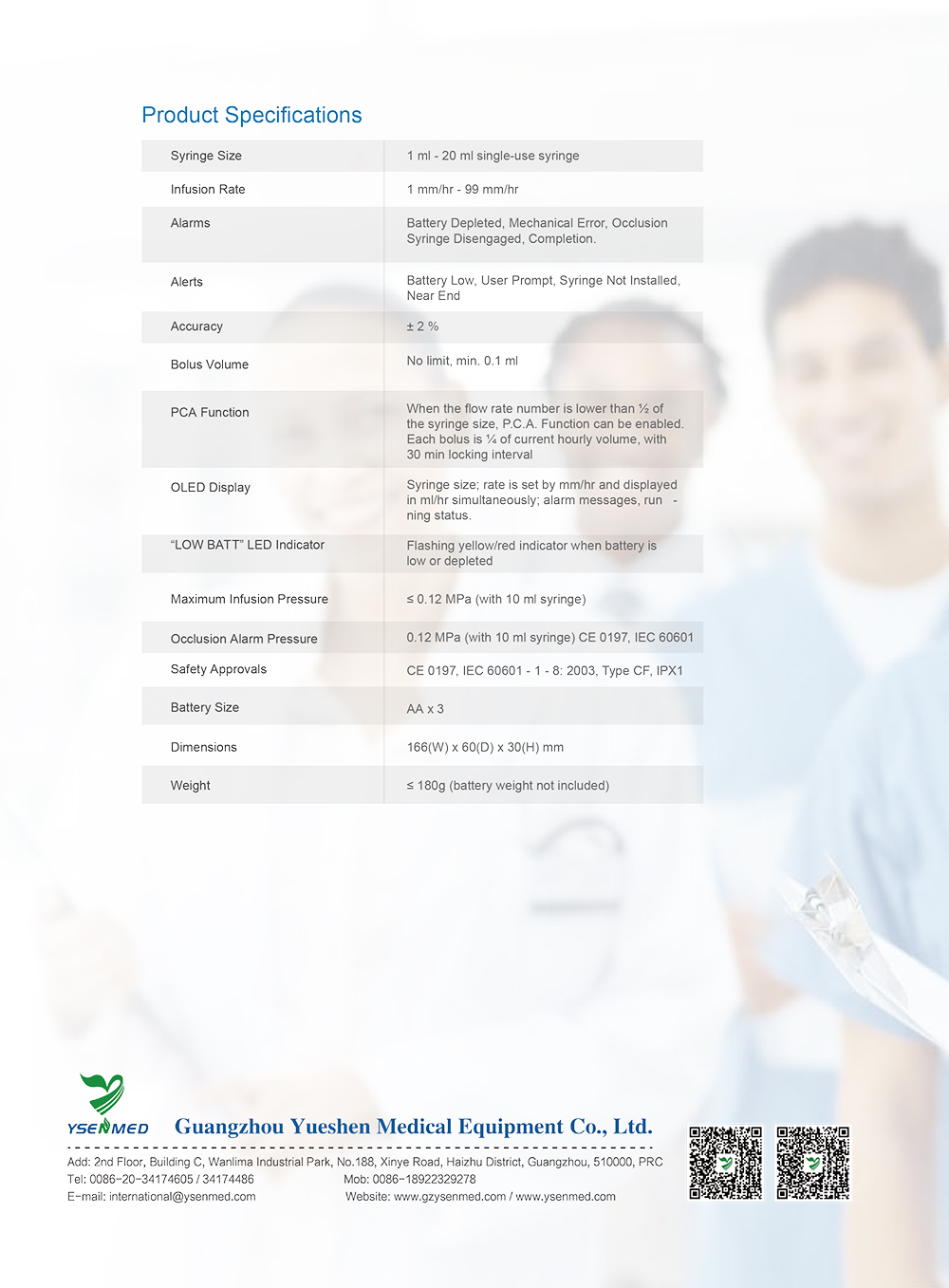

    Product Specifications
    Syringe Size 1 ml -20 ml single-use syringe
    Infusion Rate 1 mm/hr-99 mm/hr
    Alarms Battery Depleted, Mechanical Error, Occlusion Syringe Disengaged, Completion
    Alerts Battery Low, User Prompt, Syringe Not Installed, Near End
    Accuracy ±2%
    Bolus Volume No limit, min. 0.1 ml
    PCA Function When the flow rate number is lower than 1/2 of the syringe size, P.C.A. Function can be enabled. Each bolus is 1/4 of current hourly volume, with 30 min locking interval
    OLED Display Syringe size; rate is set by mm/hr and displayed in ml/hr simultaneously; alarm messages, running status.
    "LOW BATT" LED Indicator Flashing yellow/red indicator when battery is low or depleted
    Maximum Infusion Pressure ≤0.12 MPa (with 10 ml syringe)
    Occlusion Alarm Pressure 0.12 MPa (with 10 ml syringe) CE 0197, IEC 60601
    Safety Approvals CE 0197, IEC 60601-1-8:2003, Type CF, IPX1
    Battery Size AAx3
    Dimensions 166(W)x60(D)x30(H) mm
    Weight ≤180g (battery weight not included)

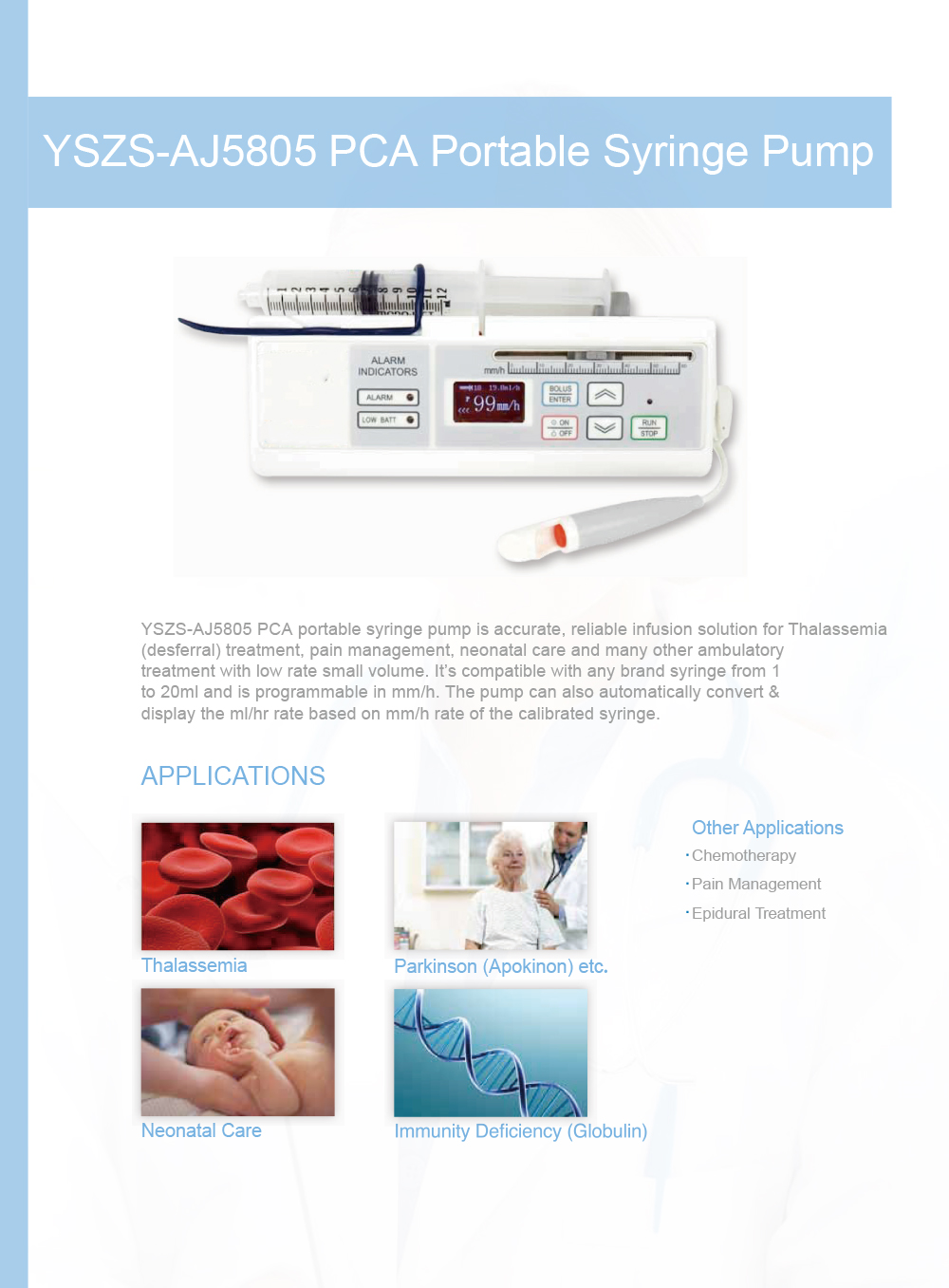

    YSZS-AJ5805 portable syringe pump is accurate, reliable infusion solution for Thalassemia(desferral) treatment, pain management, neonatal care and many other ambulatory treatment with low rate small volume. It's compatible with any brand syringe from 1 to 20ml and is programmable in mm/h. The pump can also automatically convert &display the ml/hr rate based on mm/h rate of the calibrated syringe.
    Applications
    Thalassemia
    Parkinson (Apokinon) etc.
    Neonatal Care
    Immunity Deficiency (Globulin)
    Other Applications
    Chemotherapy
    Pain Management
    Epidural Treatment

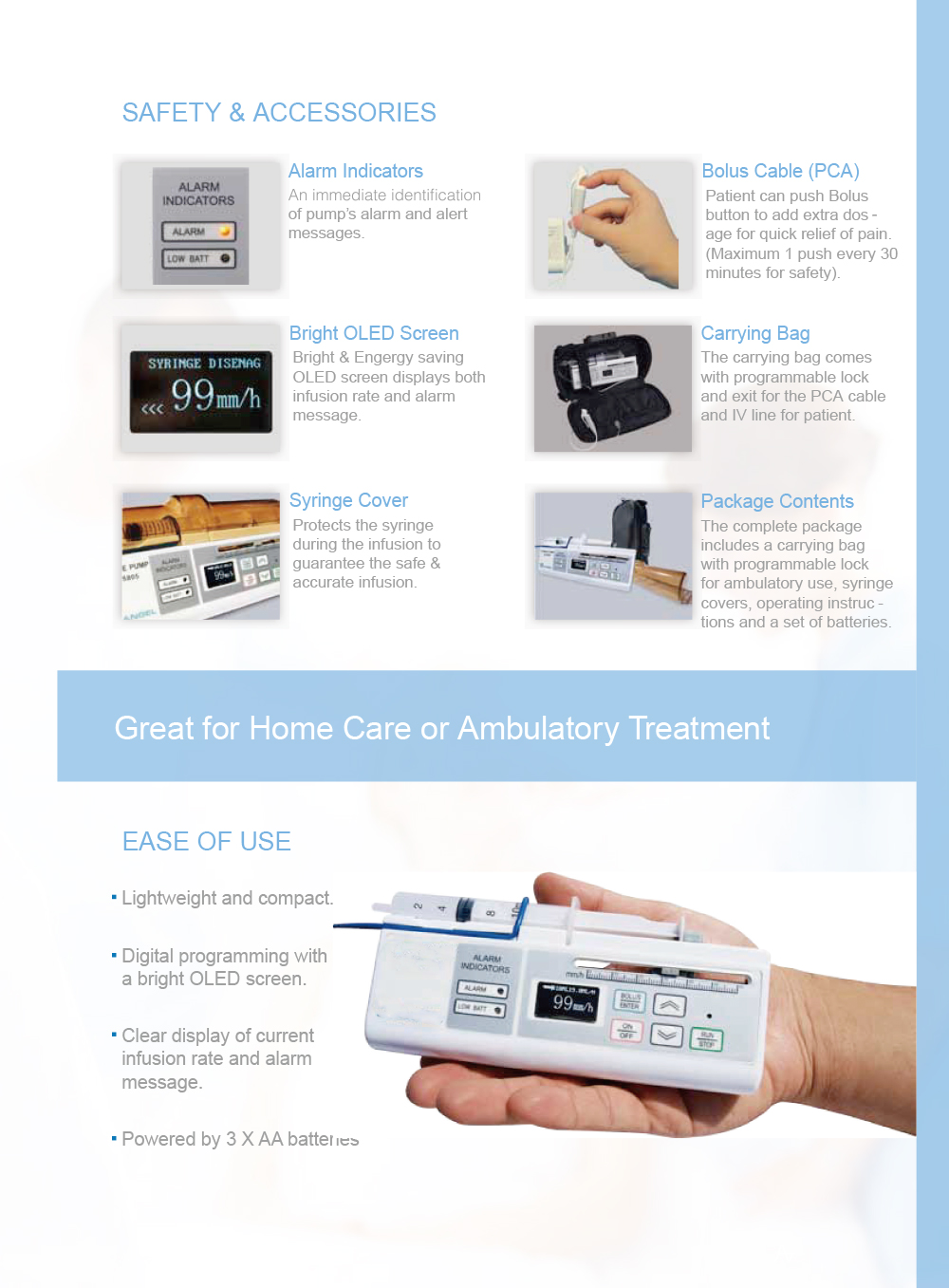

    Safety & Accessories
    Alarm Indicators
    An immediate identification of pump's alarm and alert messages.
    Bolus Cable (PCA)
    Patient can push Bolus button to add extra dos-age for quick relief of pain. (Maximum 1 push every 30 minutes for safety).
    Bright OLED Screen
    Bright & Engergy saving OLED screen displays both infusion rate and alarm message.
    Carrying Bag
    The carrying bag comes with programmable lock and exit for the PCA cable and IV line for patient.
    Syringe Cover
    Protects the syringe during the infusion to guarantee the safe & accurate infusion.
    Package Contents
    The complete package includes a carrying bag with programmable lock for ambulatory use, syringe covers, operating instructions and a set of batteries.
    Ease Of Use
    Lightweight and compact.
    Digital programming with a bright OLED screen.
    Clear display of current infusion rate and alarm message.
    Powered by 3×AA batteries.
