· High reliability and outstanding performance.
· A wide range of speed from 50 to 2200rpm.
· Brushless DC motor for long life, maintenance free and explosion proof.
· LED screen for monitoring actual speed.
· Safety circuits allow for safe stop function in anti-stall or overload conditions.
| Specifications |

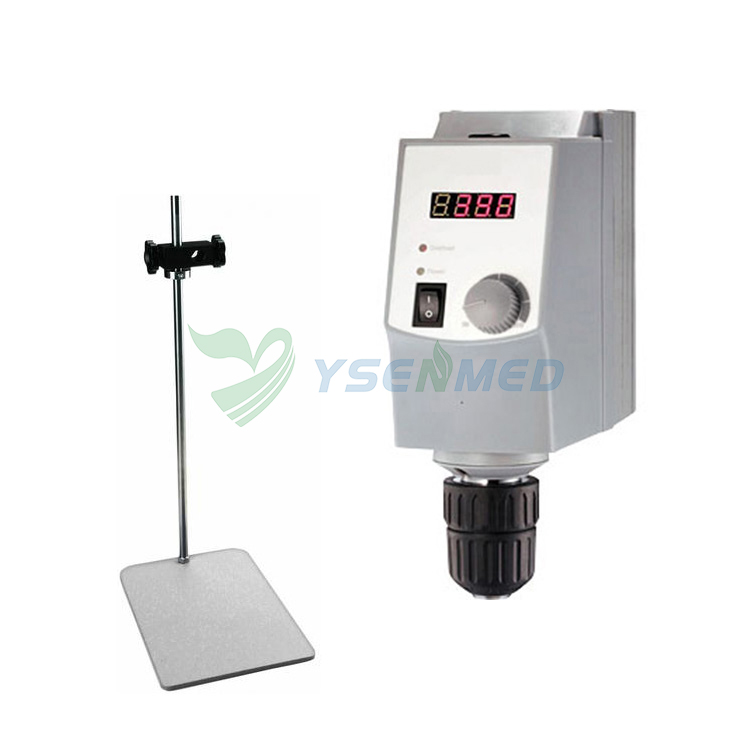

YSTE-OS40S |
| Max. stirring quantity(H2O) |
40L |
| Motor type |
brushless DC motor |
| Motor input power |
120W |
| Motor output power |
100W |
| Voltage |
100-220V, 50/60 Hz |
| Power |
130W |
| Speed range |
50-2200rpm |
| Speed display accuracy |
±3rpm |
| Speed display |
LED |
| Overload protection display |
LED lights |
| Max. torque |
60Ncm |
| Viscosity max. |
50000mPas |
| Chuck range diameter |
0.5-10mm |
| Dimension[WxHxD] |
83x.220x186mm |
| Weight |
2.8kg |
| Protection class |
IP42 |
| Permissible ambient temperature and humidity |
5-40°C 80%RH
|
