· High reliability and outstanding performance.

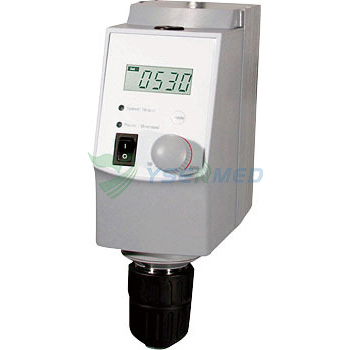

· LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm.
· Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity 、changes.
· Safety circuits allow for safe stop function in anti-stall or overload conditions.
· Smooth operation prevents accidental spillage and splashing.
· Provides constant speed even with changes in viscosities of the samples.
· Remote function provide PC control and data transmission.
· Availability of auto-restart function in case of power loss for overnight operations.
| Specifications |
YSTE-OS20P |
| Max. stirring quantity[H2O] |
20L |
| Power |
70W |
| Motor type |
brushless DC motor |
| Motor input power |
60W |
| Motor output power |
50W |
| Speed range |
50-2200rpm |
| Speed display accuracy |
±3rpm |
| Speed display |
LCD |
| Torque display |
LCD |
| Voltage |
100-220V, 50/60 Hz |
| Overload protection display |
LED lights |
| Max. torque |
40Ncm |
| Viscosity max. |
10000mPas |
| Chuck range diameter |
0.5-10mm |
| Dimension[W×D×H] |
83x220x186mm |
| Weight |
2.8kg |
| Protection class |
IP21 |
| Permissible ambient temperature and humidity |
5-40°C, 80%RH |
| Data connector |
RS232 |
