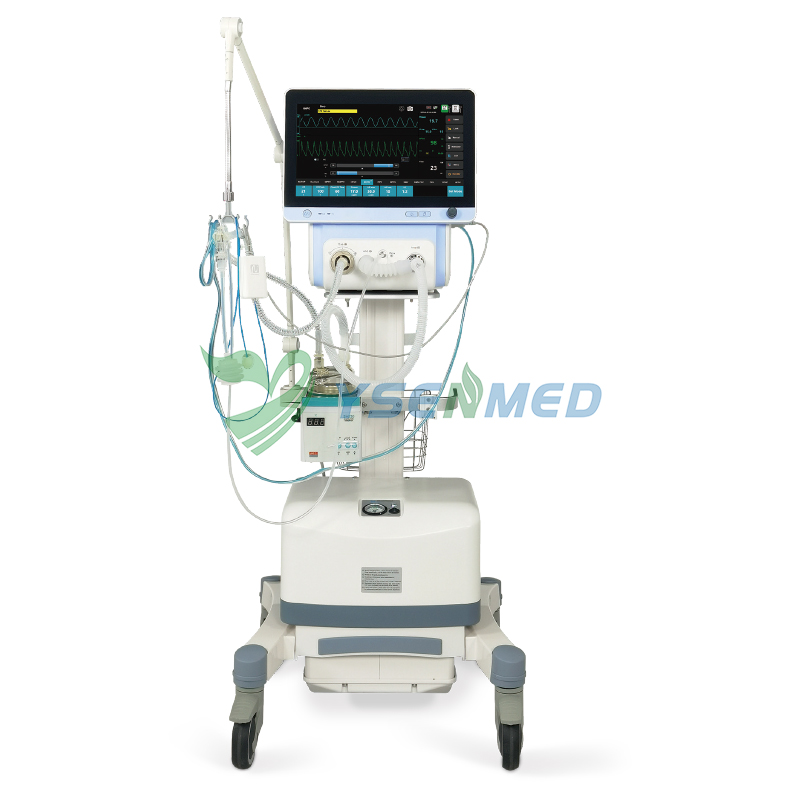

Medical HFOV High Frequency Oscillatory Ventilator
Model:YSAV-CV7

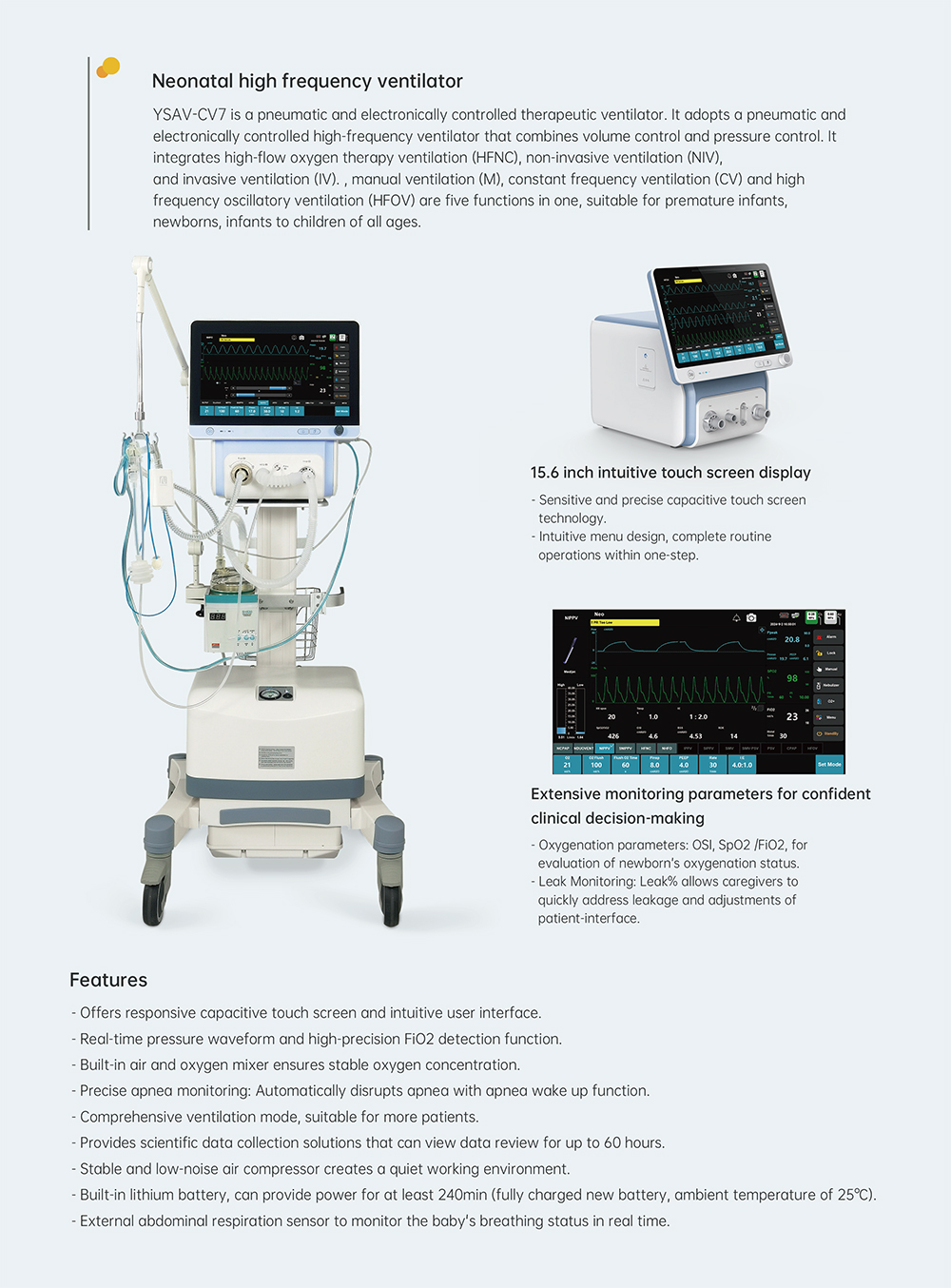

YSAV -CV7 is a pneumatic and electronically controlled therapeutic ventilator. It adopts a pneumatic and electronically controlled high-frequency ventilator that combines volume control and pressure control. It integrates high-flow oxygen therapy ventilation (HFNC), non-invasive ventilation (NIV), and invasive ventilation (IV)., manual ventilation (M), constant frequency ventilation (CV) and high frequency oscillatory ventilation (HFOV) are five functions in one, suitable for premature infants, newborns, infants to children of all ages.

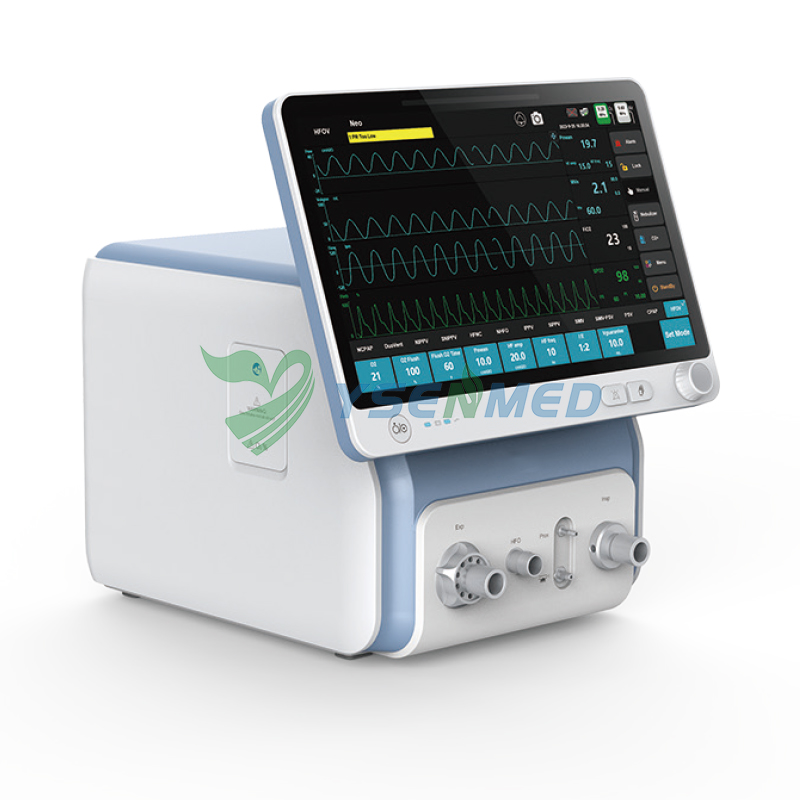

15.6 inch intuitive touch screen display
Sensitive and precise capacitive touch screen technology.
Intuitive menu design, complete routine operations within one-step.
Extensive monitoring parameters for confident clinical decision-making
0xygenation parameters: OSI, SpO2 /FiO2, for evaluation of newborn's oxygenation status.
Leak Monitoring: Leak% allows caregivers to quickly address leakage and adjustments of patient-interface.
Features
Offers responsive capacitive touch screen and intuitive user interface.
Real-time pressure waveform and high-precision FiO2 detection function.
Built-in air and oxygen mixer ensures stable oxygen concentration.
Precise apnea monitoring: Automatically disrupts apnea with apnea wake up function.
Comprehensive ventilation mode, suitable for more patients.
Provides scientific data collection solutions that can view data review for up to 60 hours.
Stable and low-noise air compressor creates a quiet working environment.
Built- in lithium battery, can provide power for at least 240min (fully charged new battery, ambient temperature of 25°C)
External abdominal respiration sensor to monitor the baby's breathing status in real time.

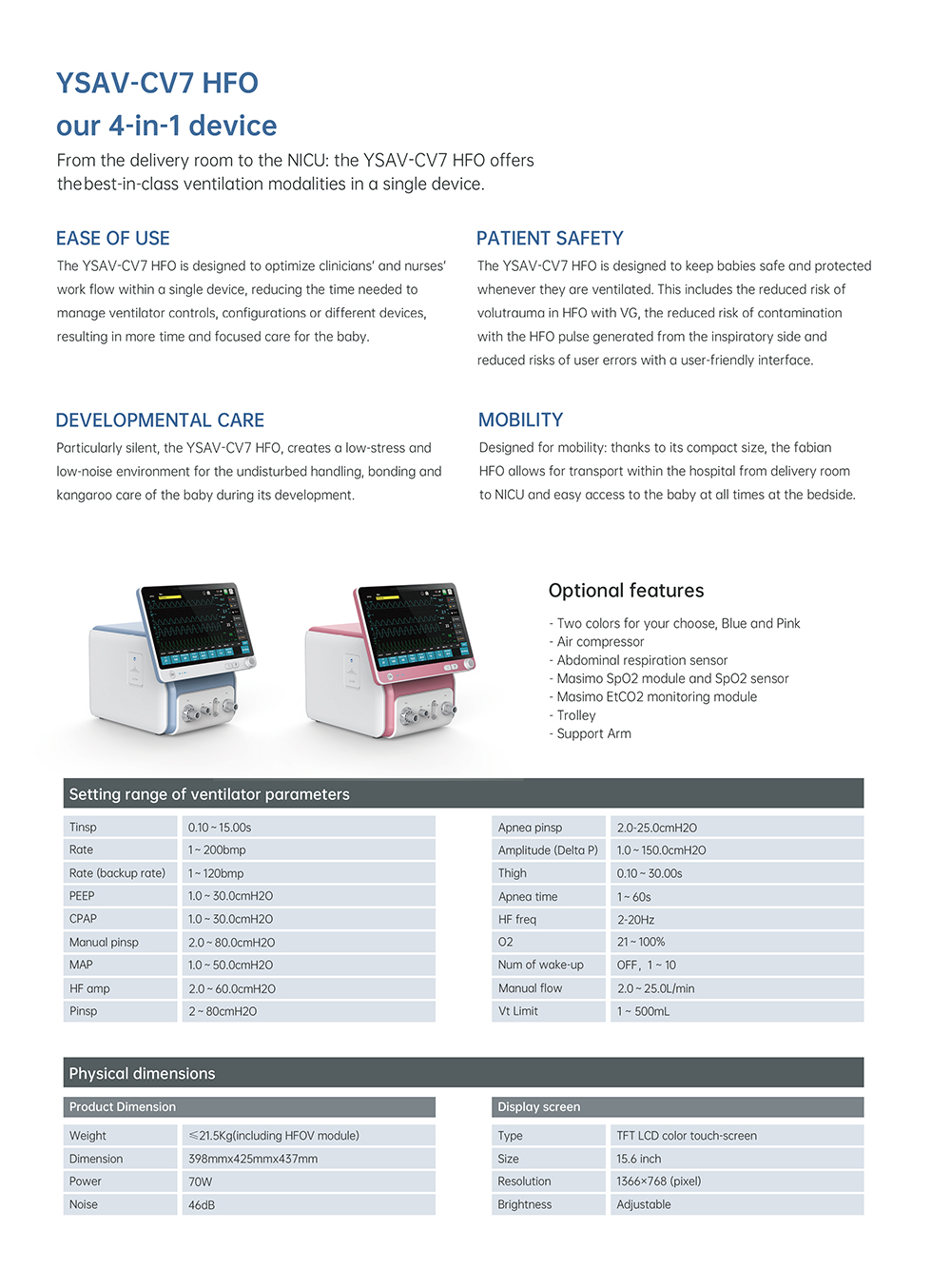

YSAV-CV7 HFO our 4-in-1 device
From the delivery room to the NICU: the YSAV -CV7 HFO offers the best-in-class ventilation modalities in a single device.
EASE OF USE
The YSAV-CV7 HFO is designed to optimize clinicians' and nurses' work flow within a single device, reducing the time needed to manage ventilator controls, configurations or different devices, resulting in more time and focused care for the baby.
PATIENT SAFETY
The YSAV-CV7 HFO is designed to keep babies safe and protected whenever they are ventilated. This includes the reduced risk of volutrauma in HFO with VG, the reduced risk of contamination with the HFO pulse generated from the inspiratory side and reduced risks of user errors with a user-friendly interface.
DEVELOPMENTAL CARE
Particularly silent, the YSAV-CV7 HFO, creates a low-stress and low-noise environment for the undisturbed handling, bonding and kangaroo care of the baby during its development.
MOBILITY
Designed for mobility: thanks to its compact size, the fabian HFO allows for transport within the hospital from delivery room to NICU and easy access to the baby at all times at the bedside.
Optional features

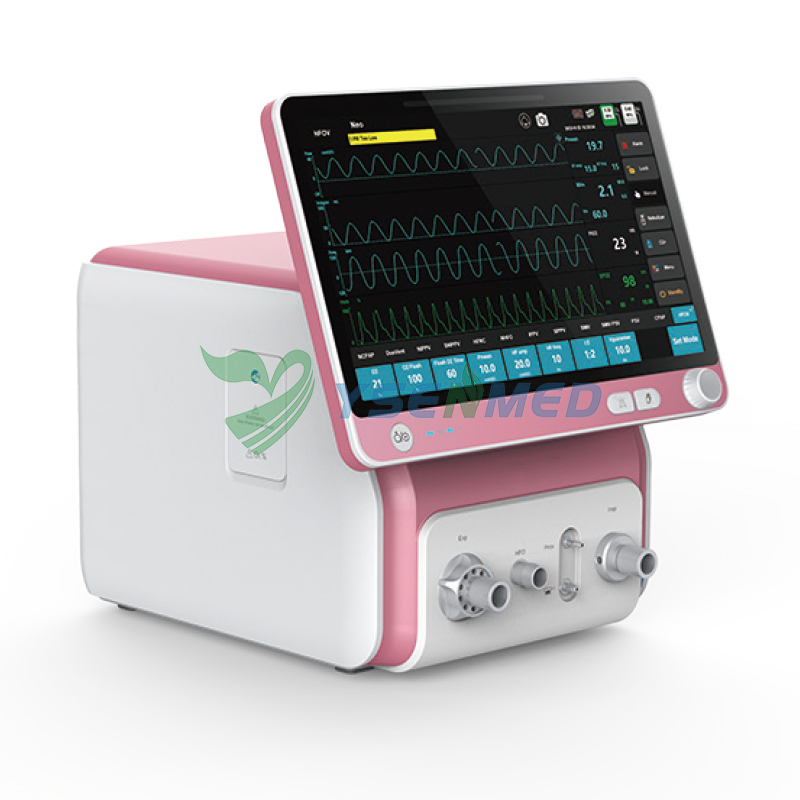

Two colors for your choose, Blue and Pink
Air compressor
Abdominal respiration sensor
Masimo SpO2 module and SpO2 sensor
Masimo EtCO2 monitoring module

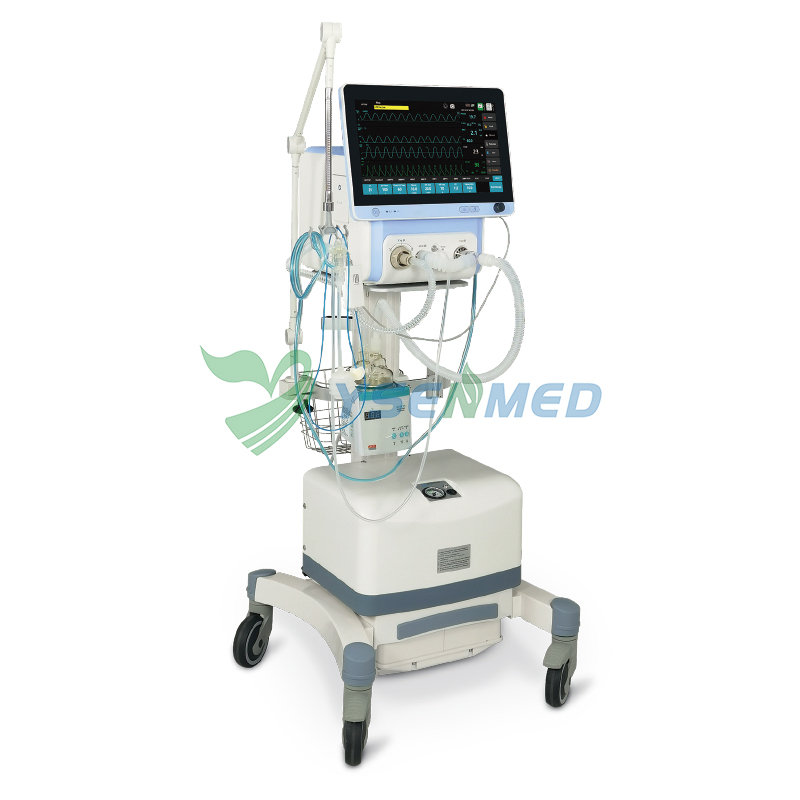

Trolley
Support Arm
Setting range of ventilator parameters
Tinsp 0.10~15.00s
Rate 1~200bmp
Rate (backup rate) 1~120bmp
PEEP 1.0~30.0cmH2O
CPAP 1.0~30.0cmH2O
Manual pinsp 2.0~80.0cmH2O
MAP 1.0~50.0cmH2O
HF amp 2.0~60.0cmH2O
Pinsp 2~80cmH2O
Apnea pinsp 2.0-25.0cmH2O
Amplitude (Delta P) 1.0~150.0cmH2O
Thigh 0.10~30.00s
Apnea time 1~60s
HF freq 2-20Hz
O2 21~100%
Num of wake-up OFF, 1~10
Manual flow 2.0~25.0L/min
Vt Limit 1~500mL
Physical dimensions
Product Dimension
Weight ≤21.5Kg(including HFOV module)
Dimension 398mmx425mmx437mm
Power 70W
Noise 46dB
Display screen
Type TFT LCD color touch-screen
Size 15.6 inch
Resolution 1366x768 (pixel)
Brightness Adjustable
