Hand-held Anesthesia Monitor YSPM-AG320

Model: YSPM-AG320
  • ModelYSPM-AG320
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Patient Monitors
    Share:
    Description Get Price Review

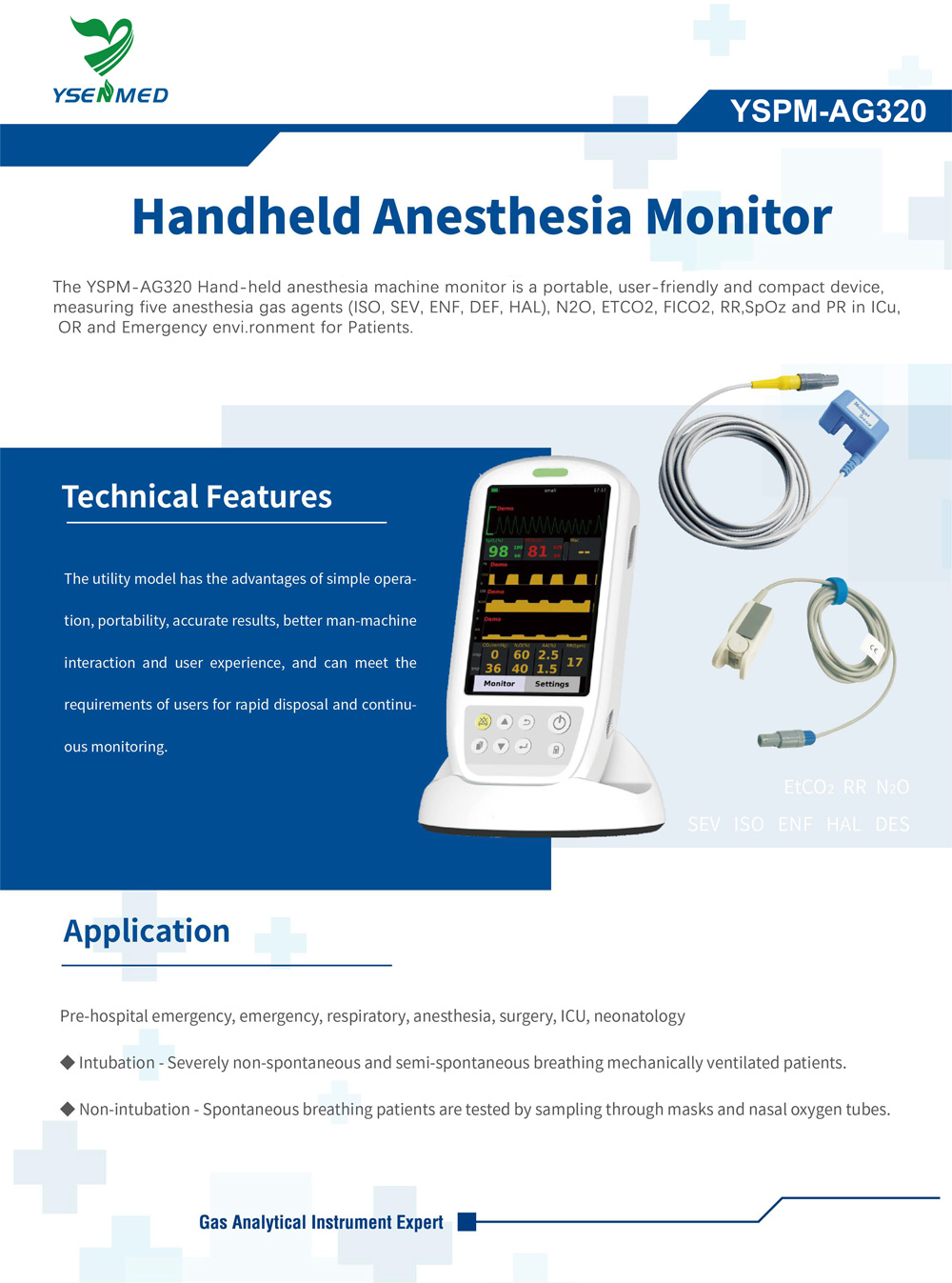

    Hand-held Anesthesia Monitor
    Model:YSPM-AG320
    Technical Features
    The utility model has the advantages of simple operation, portability, accurate results, better man-machine interaction and user experience,
    and can meet the requirements of users for rapid disposal and continuous monitoring.
    Application
    Pre-hospital emergency, emergency, respiratory, anesthesia, surgery, ICU, neonatology
    Intubation - Severely non-spontaneous and semi-spontaneous breathing mechanically ventilated patients.
    Non-intubation - Spontaneous breathing patients are tested by sampling through masks and nasal oxygen tubes.

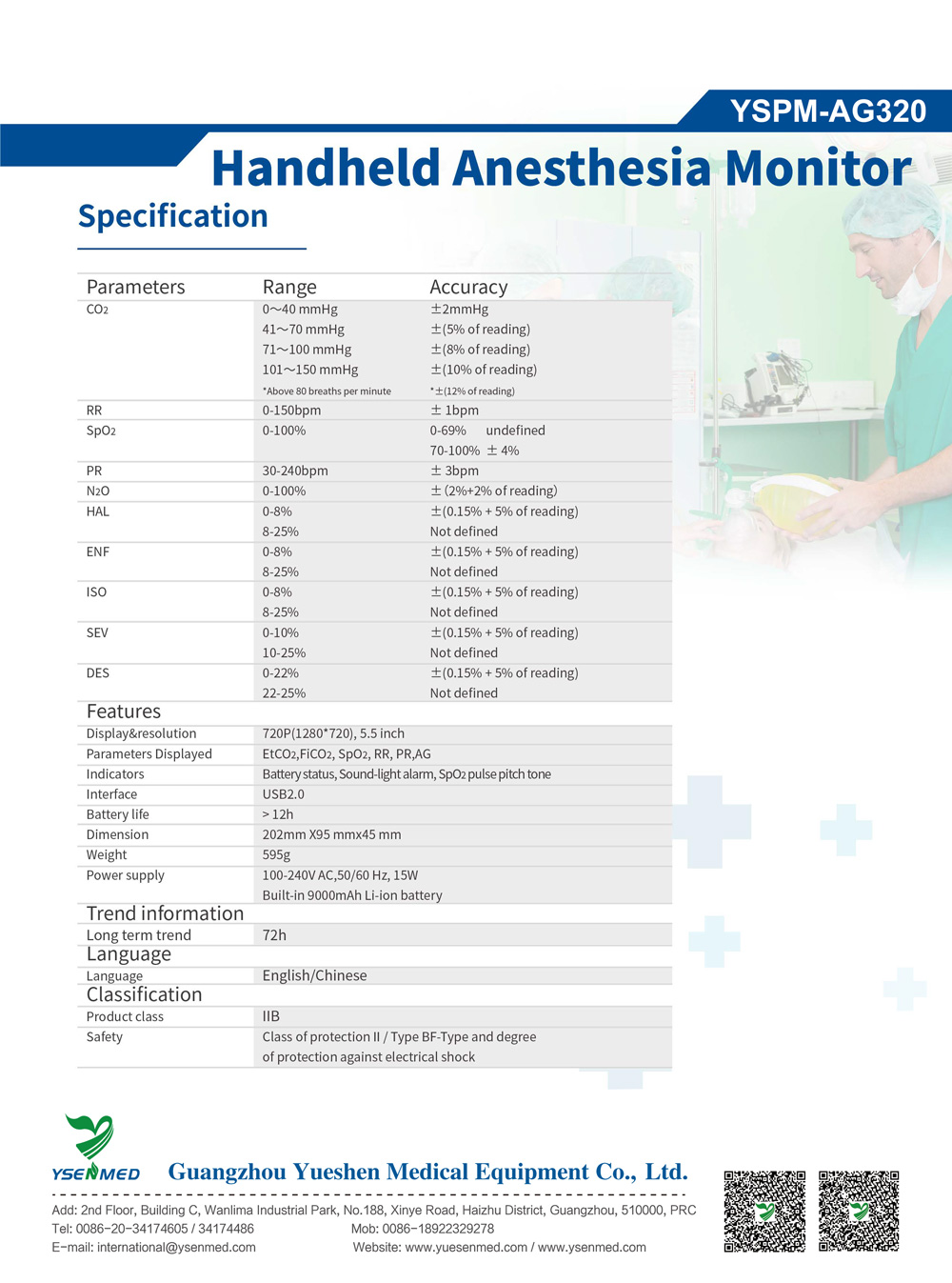

    Specification
    Parameters Range Accuracy
    CO2 0~40 mm Hg ±2mmHg
    41~70 mm Hg ±(5% of reading)
    71~100 mm Hg ±(8% of reading)
    101~150 mm Hg ±(10% of reading)
    *Above 80 breaths per minute *±(12% of reading)
    RR 0-150bpm ±1bpm
    SpO2 0-100% 0-69%  undefined
    70-100%±4%
    PR 30-240bpm ±3bpm
    N2O 0-100% ±(2%+2% of reading)
    HAL 0-8%
    8-25% ±(0.15%+5% of reading)
    Not defined
    ENF 0-8%
    8-25% ±(0.15%+5% of reading)
    Not defined
    ISO 0-8%
    8-25% ±(0.15%+5% of reading)
    Not defined
    SEV 0-10%
    10-25% ±(0.15%+5% of reading)
    Not defined
    DES 0-22%
    22-25% ±(0.15%+5% of reading)
    Not defined
    Features
    Display&resolution: 720P(1280*720),5.5 inch
    Parameters Displayed: EtCO2,FiCO2, SpO2, RR, PR,AG
    Indicators: Battery status, Sound-light alarm, SpO2 pulse pitch tone
    Interface: USB2.0
    Battery life: >12h
    Dimension: 202mmx95mmx45mm
    Weight: 595g
    Power supply: 100-240V AC,50/60 Hz,15W
    Built-in 9000mAh Li-ion battery
    Trend information
    Long term trend: 72h
    Language
    Language: English/Chinese
    Classification
    Product class: IIB
    Safety: Class of protection ll /Type BF-Type and degree of protection against electrical shock
