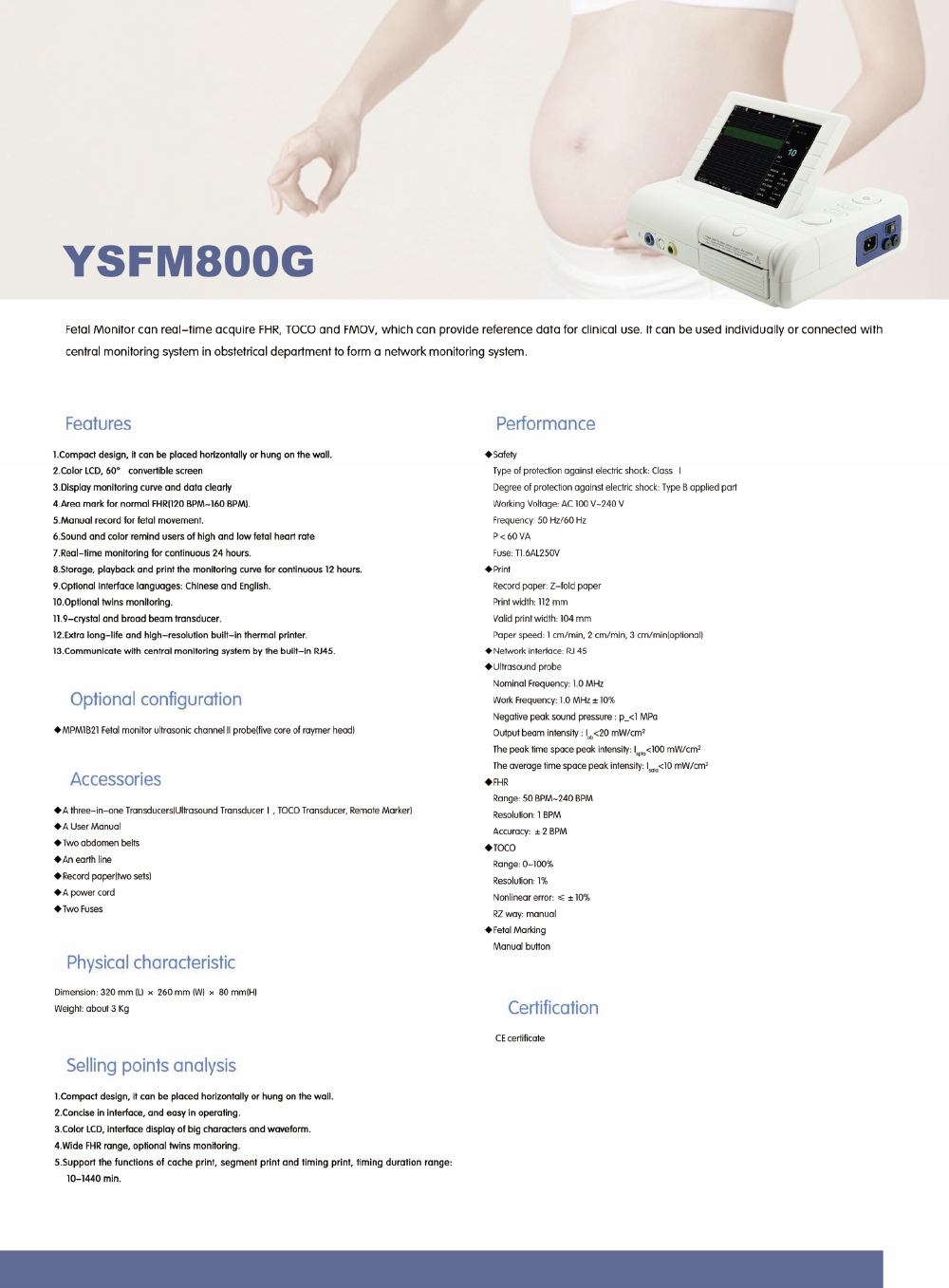

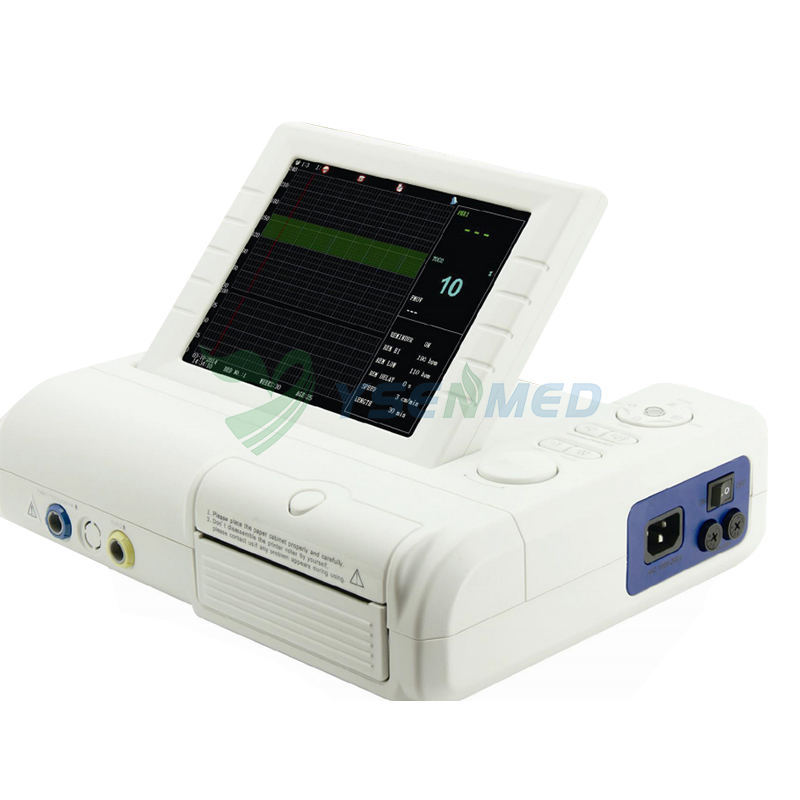

Fetal Monitor

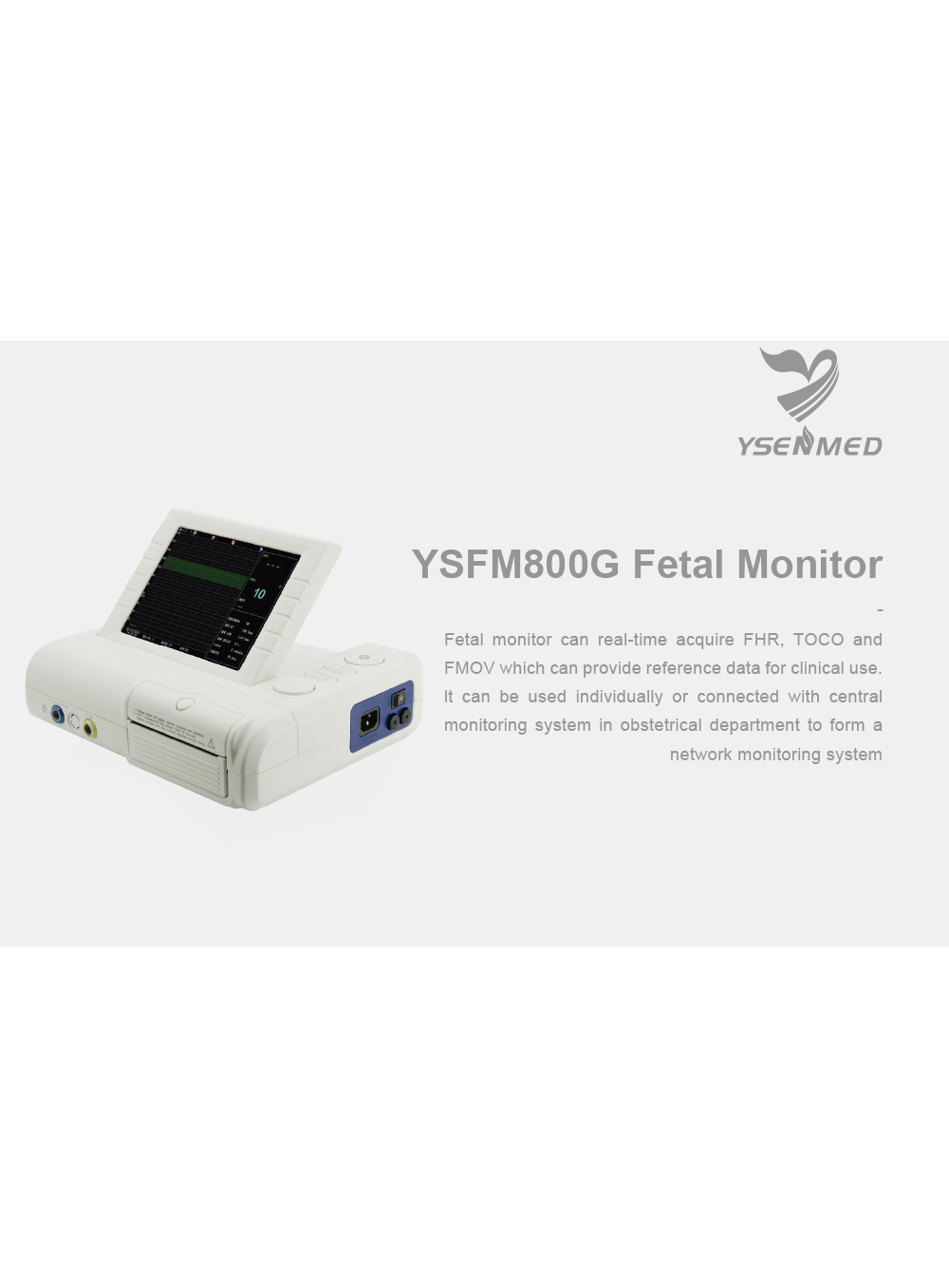

Fetal Monitor can real-time acquire FHR, TOCO and FMOV, which can provide reference data for clinical use. It can be used individually or connected with central monitoring system in obstetrical department to form a network monitoring system.
Features
Compact design, it can be placed horizontally or hung on the wall

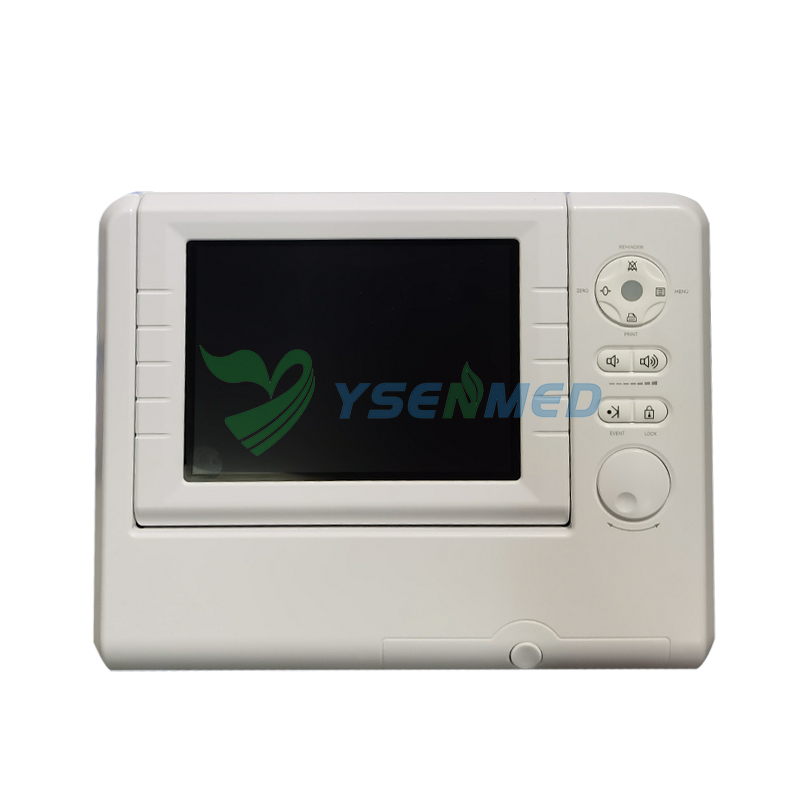

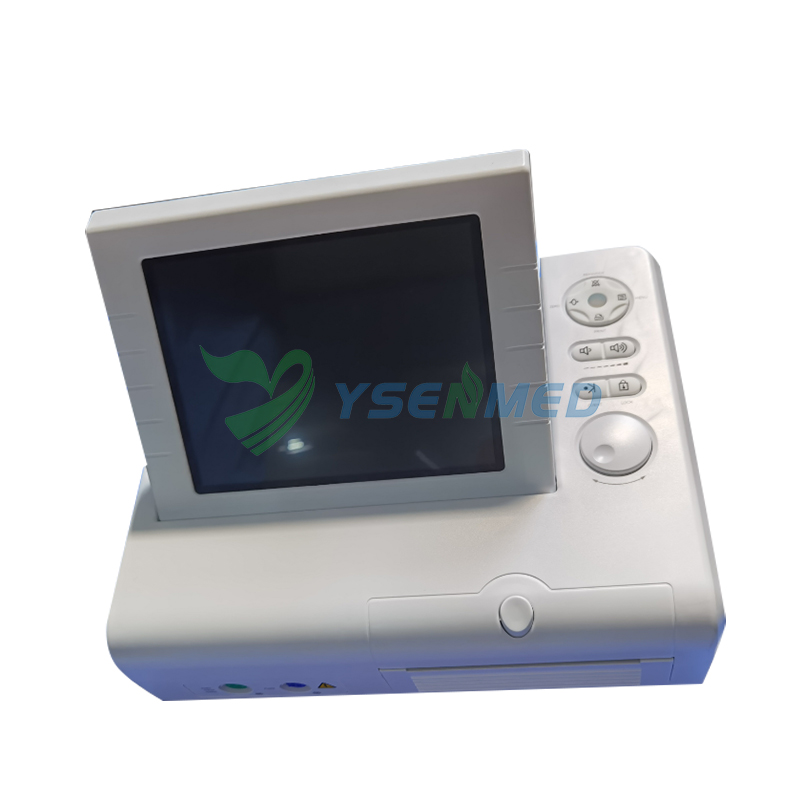

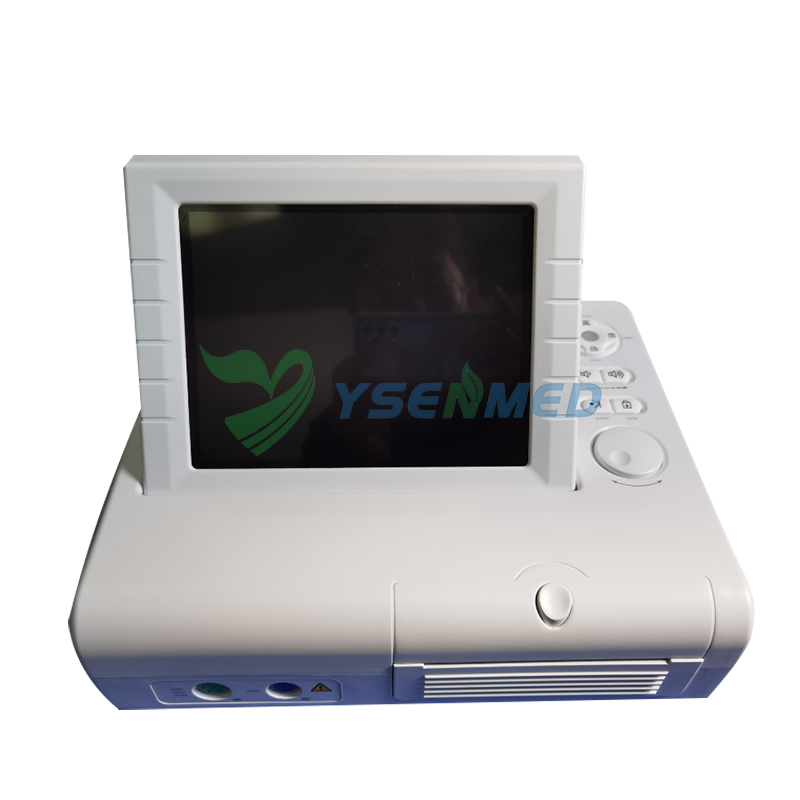

Color LCD, 60° convertible screen
Display monitoring curve and data clearly
Area mark for normal FHR(120 BPM~160 BPM)
Manual record for fetal movement
Sound and color remind users of high and low fetal heart rate
Real-time monitoring for continuous 24 hours
Storage, playback and print the monitoring curve for continuous 12 hours
Optional interface languages: Chinese and English
Optional twins monitoring
9-crystal and broad beam transducer
Extra long-life and high-resolution built-in thermal printer
Communicate with central monitoring system by the built-in RJ45
Performance
Safety
Type of protection against electric shock: Class l
Degree of protection against electric shock: Type B applied par
Working Voltage: AC 100 V~240 V
Frequency: 50 Hz/60 Hz
P<60 VA
Fuse: T1.6AL250V
Print
Record paper: Z-fold paper
Print width: 112 mm
Valid print width: 104 mm
Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional)
Network interface
RJ45
Ultrasound probe
Nominal Frequency: 1.0 MHz
Work Frequency: 1.0 MHz ± 10%
Negative peak sound pressure : p_<1 MPa
Output beam intensity : Iab<20 mW/cm2
The peak time space peak intensity: Ispta<100 mW/cm2
The average time space peak intensity: Istat<10 mw/cm2
FHR
Range: 50 BPM~240 BPM
Resolution: 1 BPM
Accuracy: ± 2 BPM
TOCO
Range: 0~100%
Resolution: 1%
Nonlinear error: ≤ ±10%
RZ way: manual
Fetal Marking
Manual button
Optional configuration
MPM1B21 Fetal monitor ultrasonic channel ll probe(five core of raymer head)
Accessories
A three-in-one Transducers(Ultrasound Transducer l, TOCO Transducer, Remote Marker)
A User Manual
Two abdomen belts
An earth line
Record paper(two sets)
A power cord
Two Fuses
Physical characteristic
Dimension: 320 mm (L)x 260 mm (W) x 80 mm(H)
Weight: about 3 Kg
Selling points analysis
Compact design, it can be placed horizontally or hung on the wall
Concise in interface, and easy in operating
Color LCD, interface display of big characters and waveform
Wide FHR range, optional twins monitoring
Support the functions of cache print, segment print and timing print, timing duration range:10-1440 min
Certification
