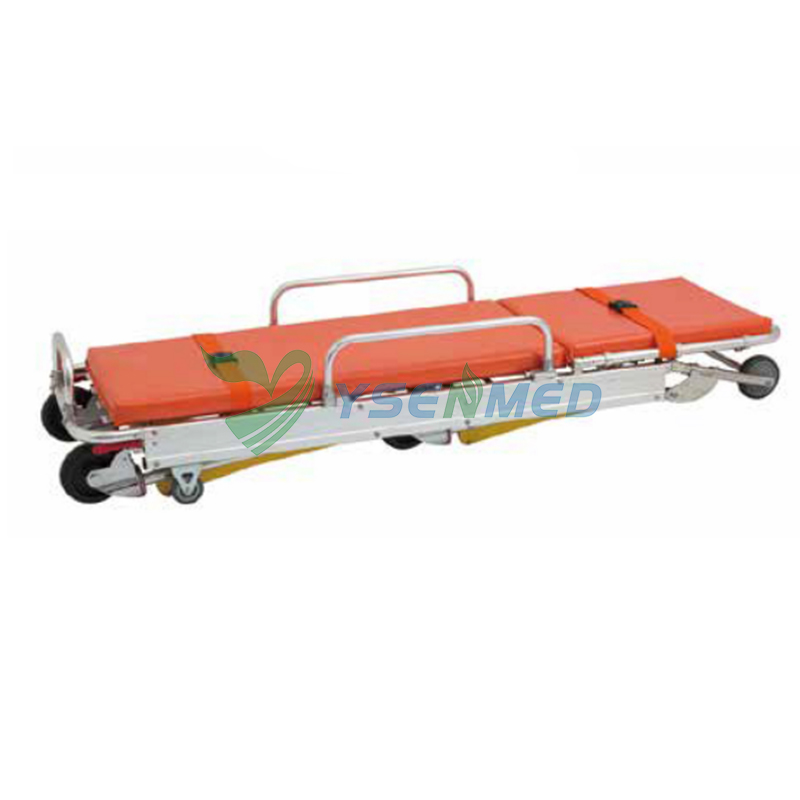

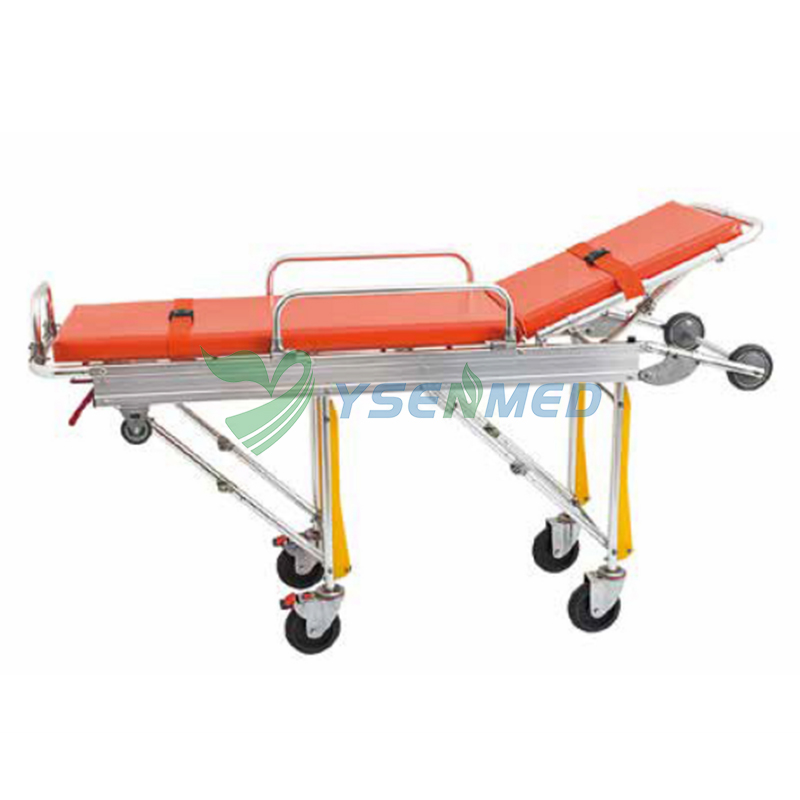

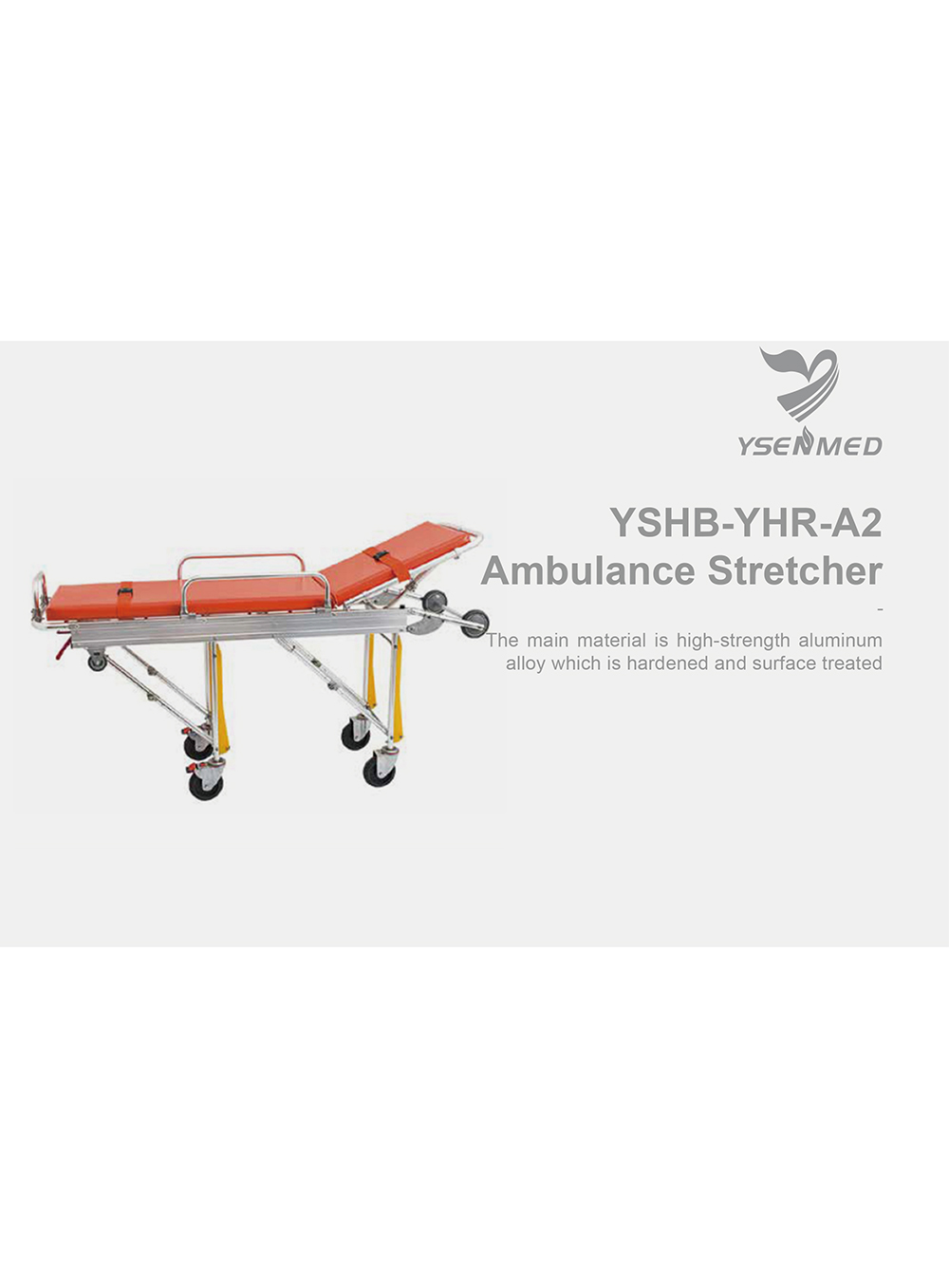

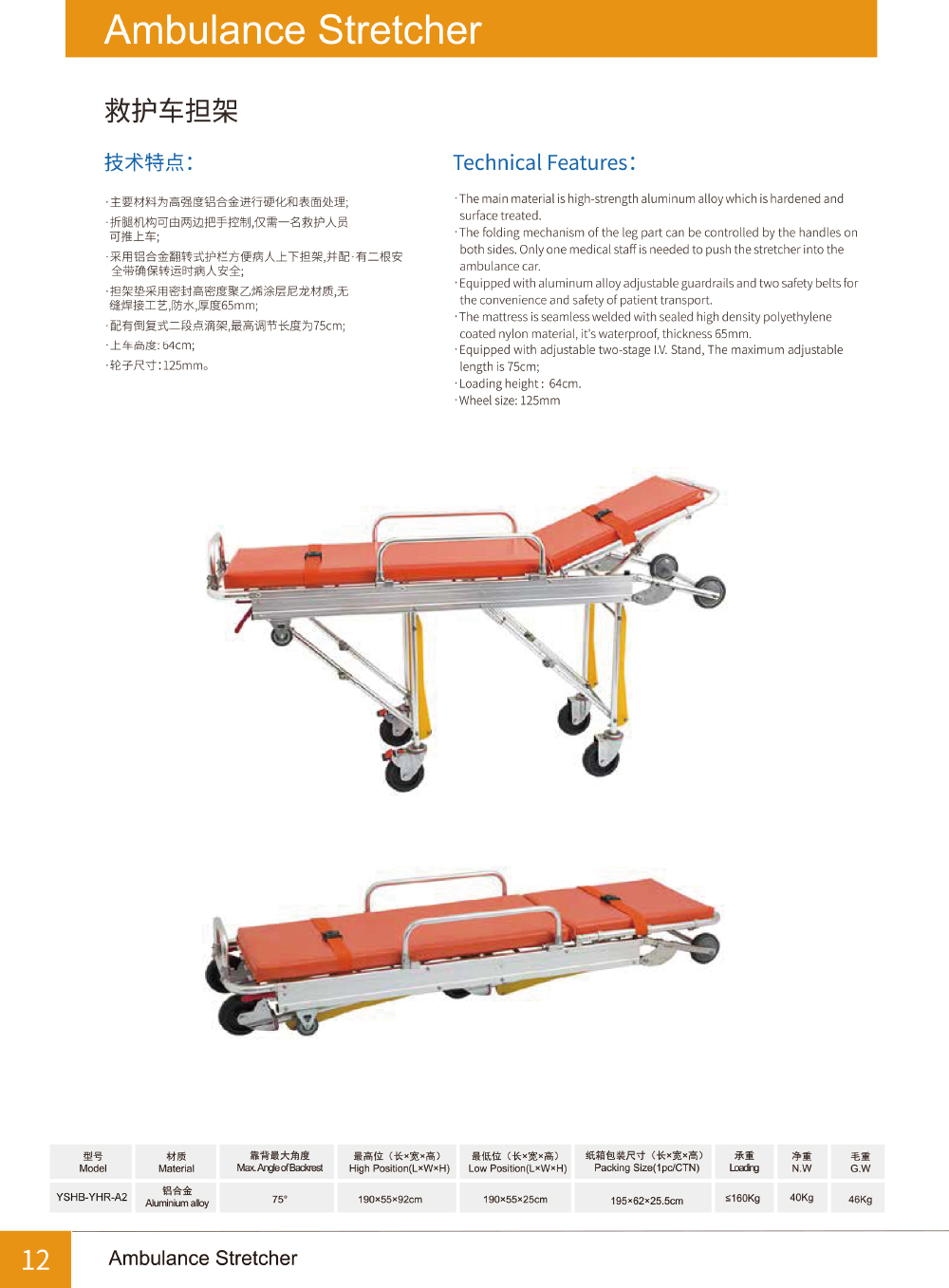

Ambulance Stretcher
Technical Features
The main material is high-strength aluminum alloy which is hardened and surface treated.
The folding mechanism of the leg part can be controlled by the handles on both sides. Only one medical staff is needed to push the stretcher into the ambulance car.
Equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.
The mattress is seamless welded with sealed high density polyethylene coated nylon material, it's waterproof, thickness 65mm.
Equipped with adjustable two-stage l.V. Stand, The maximum adjustable
length is 75cm;
Loading height: 64cm.
Wheel size: 125mm
Parameter
Model YSHB-YHR-A2
Material Aluminium alloy
Max. Angle of Backrest 75°
High Position(LxWxH) 190x55x92cm
Low Position(LxWxH) 190x55x25cm
Packing Size(1pc/CTN) 195x62x25.5cm
Loading ≤160Kg
N.W 40Kg
G.W 46Kg
