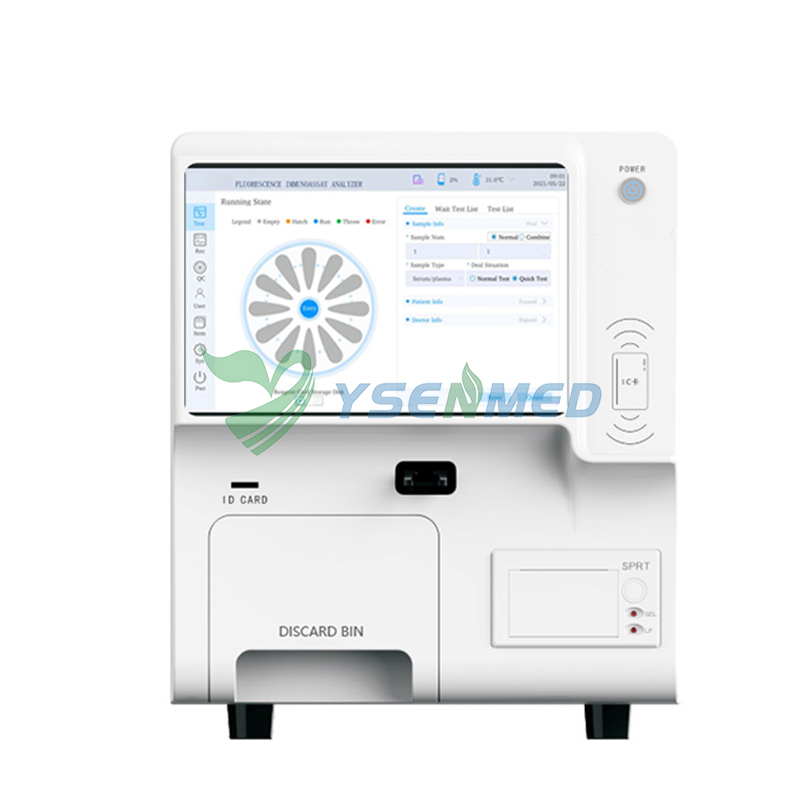

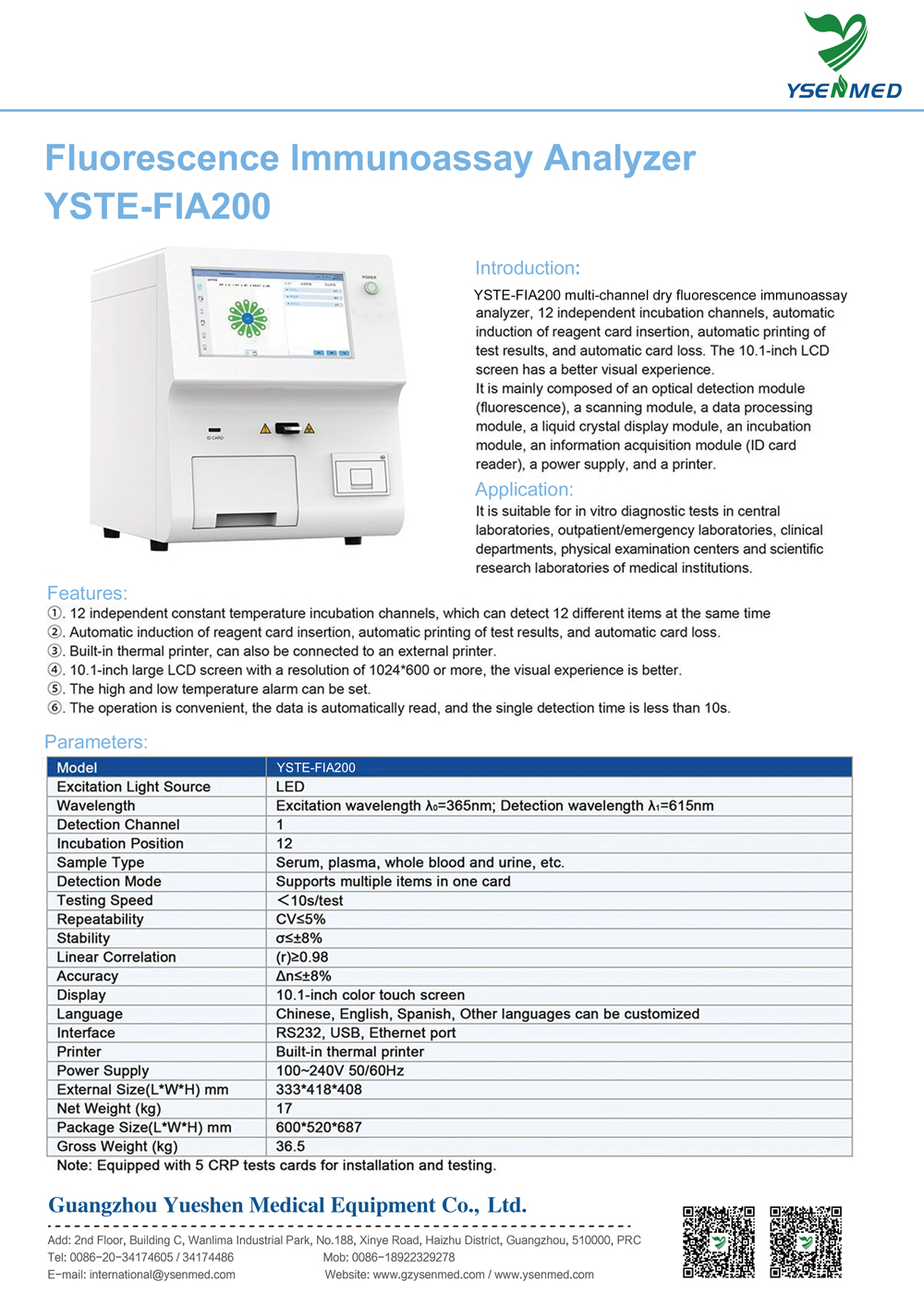

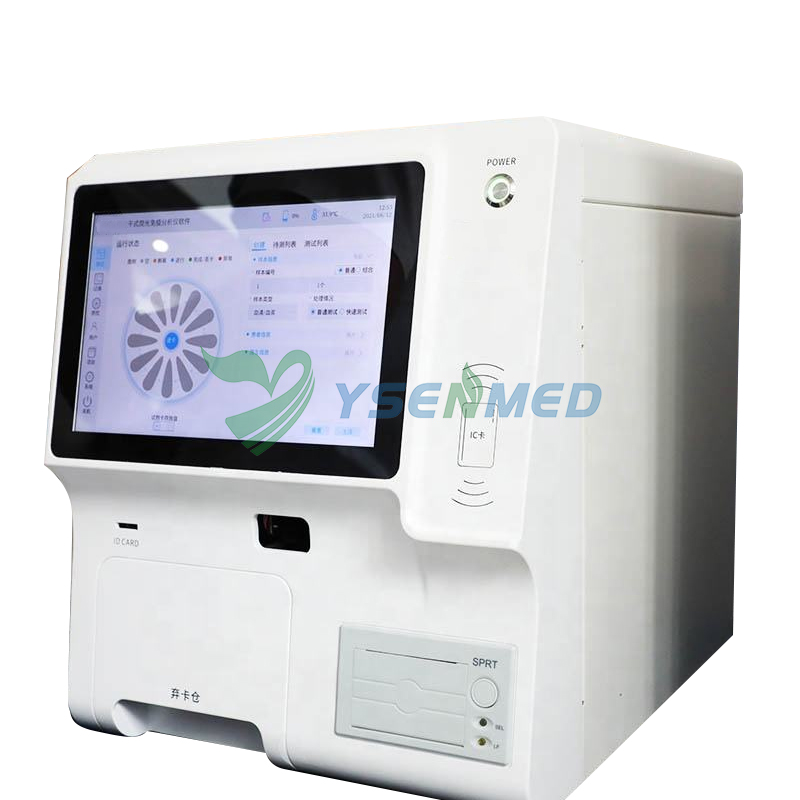

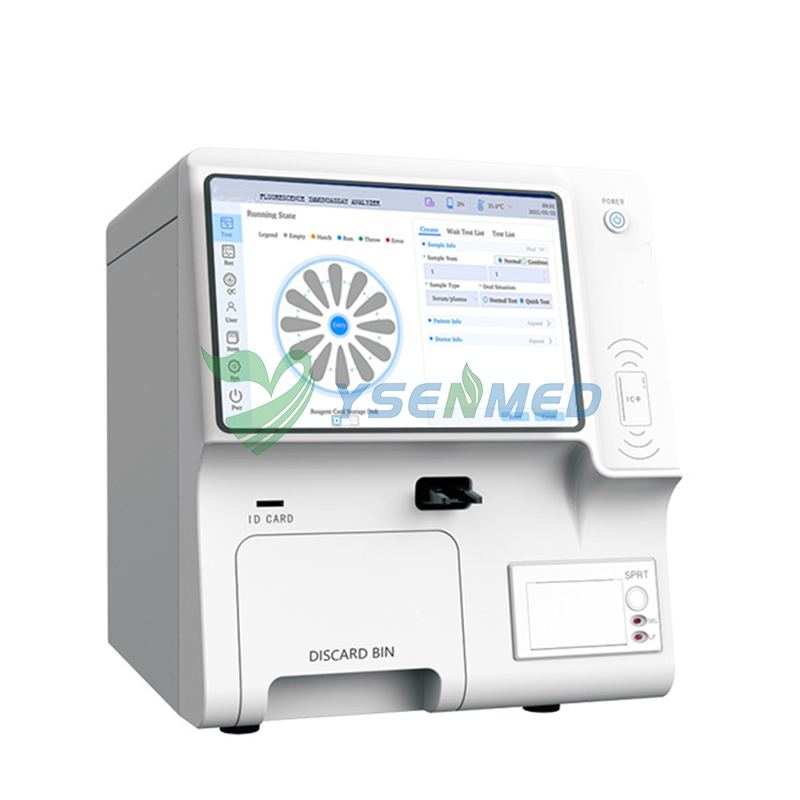

YSENMED 12-Channel Medical Fluorescence Immunoassay Analyzer
Model:YSTE-FIA200
Introduction
YSTE-FIA200 multi-channel dry fluorescence immunoassay analyzer, 12 independent incubation channels, automatic induction of reagent card insertion, automatic printing of test results, and automatic card loss. The 10.1-inch LCD screen has a better visual experience.
It is mainly composed of an optical detection module(fluorescence), a scanning module, a data processing module, a liquid crystal display module, an incubation module, an information acquisition module (ID card reader), a power supply, and a printer.
Application
It is suitable for in vitro diagnostic tests in central laboratories, outpatient/
emergency laboratories, clinical departments, physical examination centers and scientific research laboratories of medical institutions.
Features
12 independent constant temperature incubation channels, which can detect 12 different items at the same time.
Automatic induction of reagent card insertion, automatic printing of test results, and automatic card loss.
Built-in thermal printer, can also be connected to an external printer.
10.1-inch large LCD screen with a resolution of 1024*600 or more, the visual experience is better.
The high and low temperature alarm can be set.
The operation is convenient, the data is automatically read, and the single detection time is less than 10s.
Parameters
Model YSTE-FIA200
Excitation Light Source LED
Wavelength Excitation wavelength λ0=365nm;
Detection wavelength λ1=615nm
Detection Channel 1
Incubation Position 12
Sample Type Serum, plasma, whole blood and urine, etc.
Detection Mode Supports multiple items in one card
Testing Speed <10s/test
Repeatability CV≤5%
Stability σ≤±8%
Linear Correlation (r)≥0.98
Accuracy Δn≤±8%
Display 10.1-inch color touch screen
Language Chinese, English, Spanish, Other languages can be customized

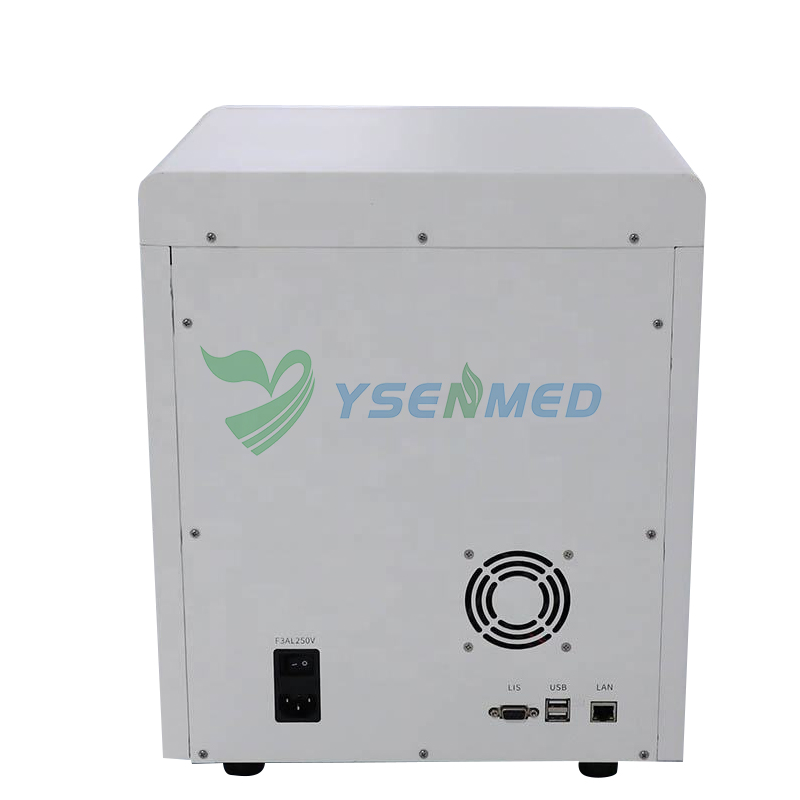

Interface RS232, USB, Ethernet port
Printer Built-in thermal printer
Power supply 100~240V 50/60Hz
External Size(L*W*H) mm 333*418*408
Net Weight (kg) 17
Package Size(L*W*H) mm 600*520*687
Gross Weight (kg) 36.5
