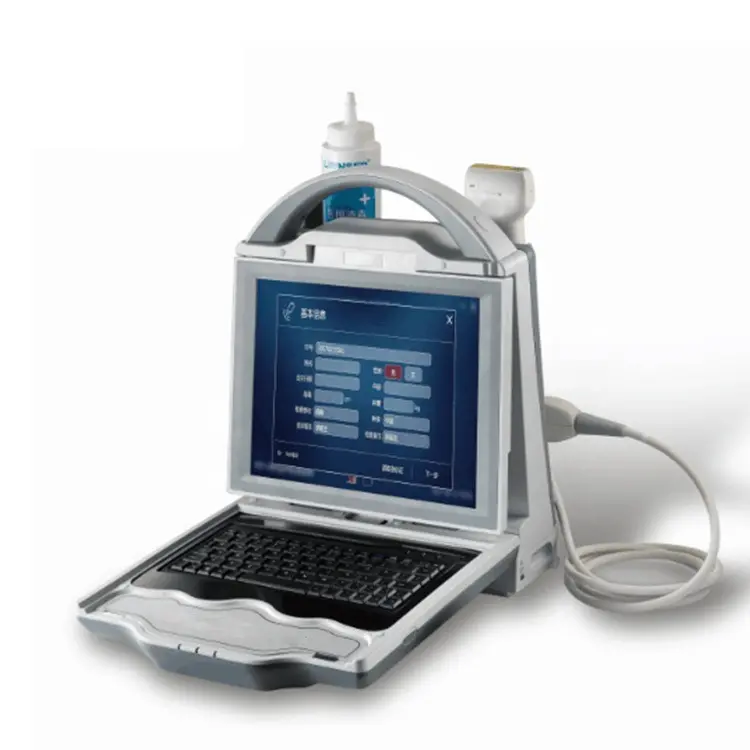

YSBMD-A3 Top Selling Medical Ultrasonic Bone Density Tester Portable Ultrasound Bone Densitometer

Model: YSBMD-A3
  • ModelYSBMD-A3
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Bone Densitometer
    Share:
    Description Get Price Review
    Top Selling Medical Ultrasonic Bone Density Tester Portable Ultrasound Bone Densitometer YSBMD-A3
    Application:
    Ultrasound Bone Densitometer YSBMD-A3 has extensive application. This portable model is the best choice for hospital outgoing examination, hospital wards, Mobile Inspection, Physical Examination Vehicle, Pharmaceutical factory, Pharmacy and Health Care Products promotion.
    Our Ultrasound Bone Densitometer always used for Maternal and Child Health Centers, Geriatric Hospital, Sanatorium, Rehabilitation Hospital, Bone Injury Hospital, Physical Examination Center, Health Center, Community Hospital, Pharmaceutical factory,  Pharmacy and Health Care Products Promotion
    The Department of the General Hospital, Such as Pediatric Department, Gynecology and Obstetrics Department, Orthopedics Department,  Geriatrics Department,  Physical Examination, Department,Rehabilitation department
    Characteristics:
    Portable model, easy to move
    Precise and Artistic Mould Manufactured
    Full dry technology, Makes Diagnostic More Convenient.
    Measurement parts: Radius and Tibia.
    The measurement process is simple and fast
    High measurement speed, short measurement time
    High Measurement Accuracy
    Good Measurement Reproducibility
    The particular correction system to correct system error effectively.
     it with different countries clinical database, including: European, American, Asian, Chinese,
     WHO international compatibility. It measuring the people between the age of 0 and 100.(Children and Adult)
     English menu and Color Printer report
    CE Certificate, ISO Certificate, CFDA Certificate

    Technical Specifications:
     Large Scale Integrated circuit
    Multi - layer circuit board design
    High shielding Multi-point Signal Contact Mode
    Precise Mould Manufactured
    Famous Brand Embedded Industrial Control Computer
    Special Analysis System Based on Different Countries People
    Performance parameter:
    1. Measurement parts: radius and Tibia
    2.  Measurement  mode: double emission and double receiving
    3. Measurement parameters:  Speed of sound (SOS)
    4. Analysis Data: T- Score, Z-Score, Age percent[%], Adull percent[%], BQI (Bone quality Index ), PAB[Year]  (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk).
    5. Measurement  Accuracy : ≤0.25%
    6. Measurement Reproducibility:  ≤0.25%
    7. Measurement  time: <25 seconds
    8. Probe frequency : 1.20MHz
    9. Date analysis :  it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically .
    10.  Temperature control: Perspex sample with temperature instructions
    11.  Probe measurement navigation:  this equipment display the Axial angle ,  the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data.  It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.
    12.  Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.
    13. Daily Calibration:  automatic calibrating after power on.
    14. All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old,  only need to input the age and recognizing automatically .
    15.  Temperature display calibration block:  the calibration with pure copper and Perspex,  the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.
    16. repot mode: color
    17.  Report format: supply A4, 16K ,B5 and more size report
    18. Portable model
    19.  Computer configuration: CPU dual core, 4G memory, electronic hard disk, wireless mouse
    20. Printer: optional
    21. Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
    22.  External medical special power supply, power>60W
    23.  Connect to the internet and provide remote services.
    24. Monitor: 10.4’ color HD color LED monitor.
    25.  Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7
    26. Main unit weight< 4kgs, easy to carry
    Configuration:
    1. Ultrasound Bone Densitometer Main Unit
    2. 1.20MHz Probe
    3. Famous Brand Embedded Industrial Control Computer
    4. BMD-A5 Intelligent Analysis System
    5. Calibrating Module (Perspex sample)
    6. Disinfectant Coupling Agent
    Note: Printer is optional
    Package Size:
    One Carton
    Size(cm): 42cm×34cm×44cm
    G.W.11Kgs
    N.W: 6 Kgs
