Visible Spectrophotometer/Visible Basic Spectrophotometer YSTE-V1000Y

Model: YSTE-V1000Y
  • ModelYSTE-V1000Y
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Spectrophotometer
    Share:
    Description Get Price Review

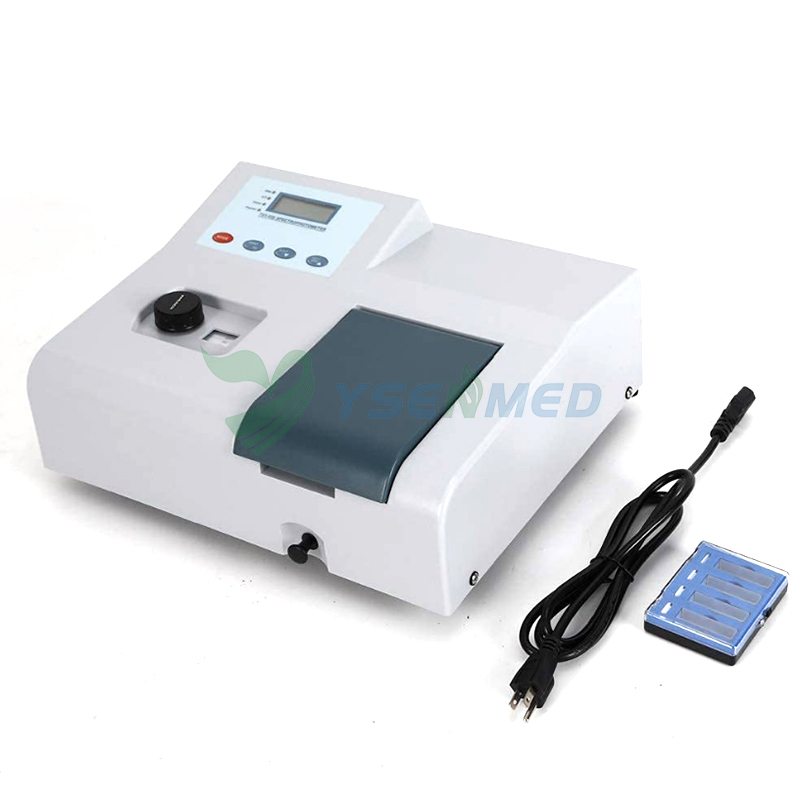

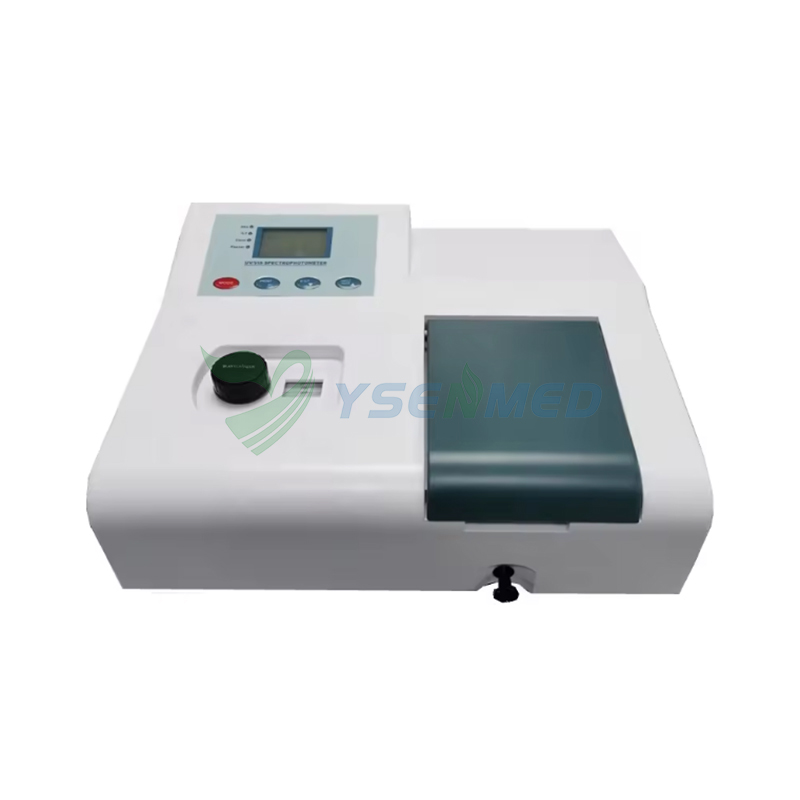

    Visible Spectrophotometer/Visible Basic Spectrophotometer
    Model:YSTE-V1000Y
    Product Description
    YSTE-V1000Y series is a simple single beam spectrophotometer. The wavelength is set manually from the dial on the front panel. Direct readout of transmission or absorption on the LED display. Measured values can be transferred to PC via Rs232 port for further analysis. Low price and simple design make the model ideal tool for education or routine analysis.
    Applications
    Education in universities and colleges, food & Beverage production and quality control, Agricultural monitoring
    etc.
    Specifications
    Model YSTE-V1000Y YSTE-V1100Y
    Optical system Single Beam, Grating 1200 lines/mm
    Wavelength Range 350-1020nm 320-1020nm
    Spectral Bandwidth 6nm 5nm
    Wavelength Accuracy ±3nm ±2nm
    Wavelength Repeatability 1nm
    Photometric Accuracy ±1%T ±0.5%T
    Photometric Repeatability 0.5%T 0.2%T
    Photometric Range 0-200%T,-0.3-3A
    Stray light 0.5%T 0.3%T
    Stability 0.004 A 0.002 A
    Baseline Flatness ±0.002A ±0.002A
    Noise ±0.001 A
    Wavelength setting Manual
    Work Mode T, A, C
    Light Source Tungsten lamp
    Display 4 LCD
    Detector Silicon Photodiode
    Output RS-232 port
    Power AC 220V/50Hz or AC 110V/60Hz
    Shipping size 520*450*320mm
    Gross Weight 10kg
