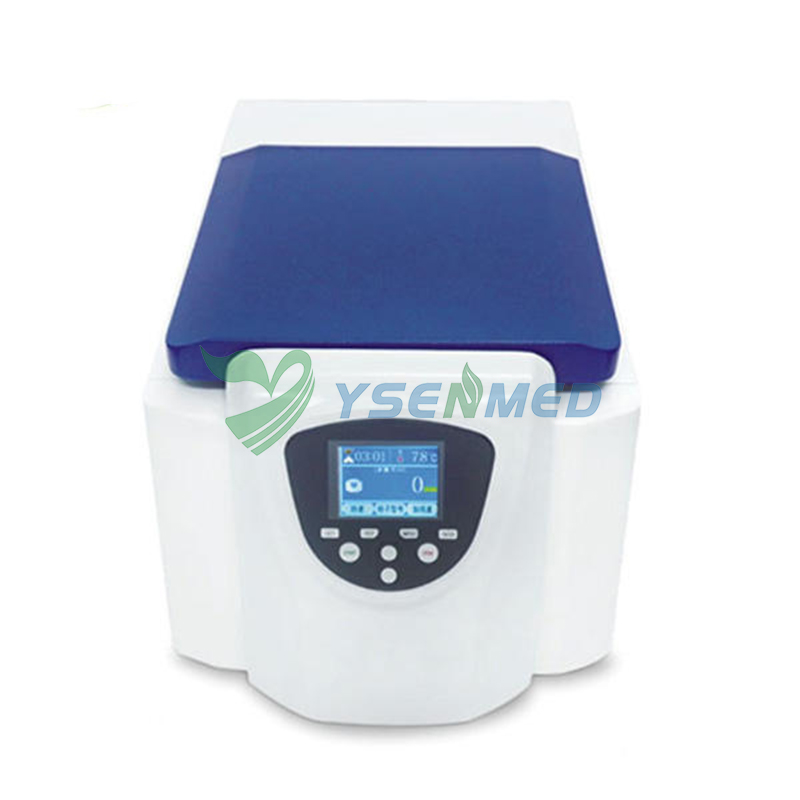

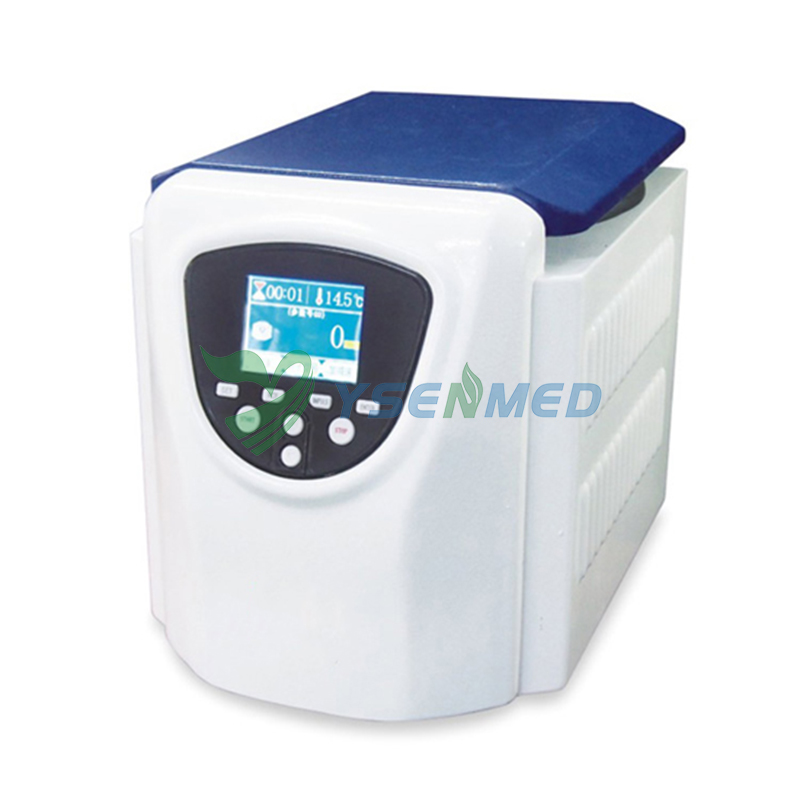

Table-type High-Speed Centrifuge

Model:YSCF-TG16MW
Features:
With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.
Driven by a variable-frequency brushless motor to achieve quite and clean operation.
With a dedicated key indicating the centrifugal force.
With a motor gate lock mute mechanical & electrical integration.
Designed with a shock absorber to reduce vibration and achieve smooth running.
10 speed-up and speed-down options,the optimal speed-up time is 30 seconds,the optimal speed-down time 30 seconds.
Rotors and adapters can be tailor-made according to customer's requirements.
Functions can be customized according to customer's needs,man-machine interaction is direct and pragmatic.
Can store 20 user programme.
Model YSCF-TG16MW
Max Capacity 12×10ml
Max Speed(r/min) 16500r/min
Max RCF(×g) 18780×g
Speed precision ±50r/min
Motor Frequency motor
Temp.control range -20℃~+40℃
Timer range 0-99h59min
Noise ≤65dB
weight 17kg
Dimension(L×W×H) 380×260×310mm
Model Capacity Max speed Max RCF(xg)
Angle rotor 12X1.5/2.0ml 16500 18780
18X1.5/2.0ml 15000 17770
24X1.5/2.0ml 14000 18187
10X5ml 14000 13600
8X7ml 14000 12271
