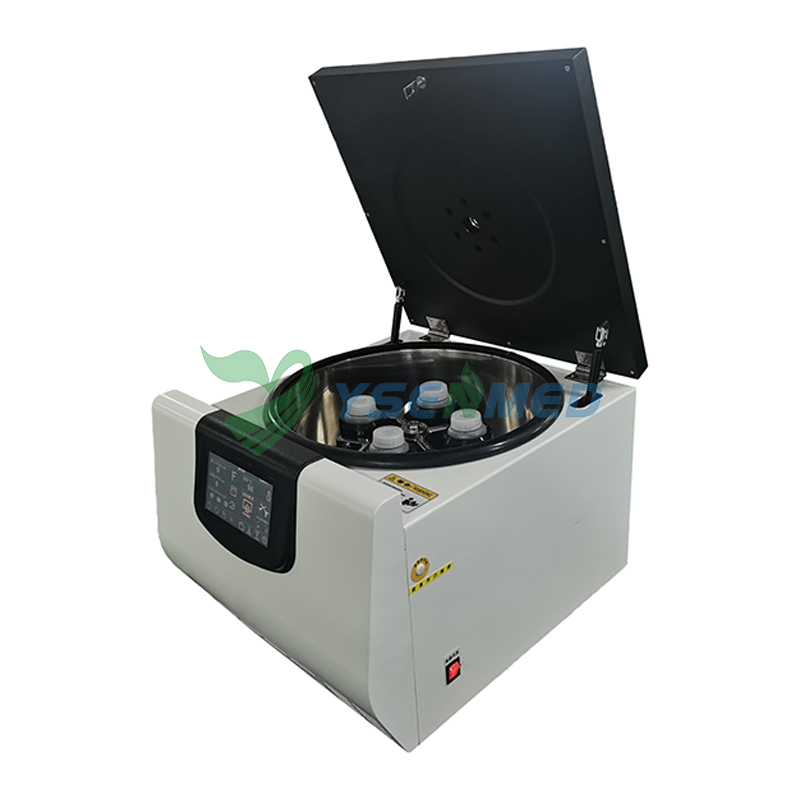

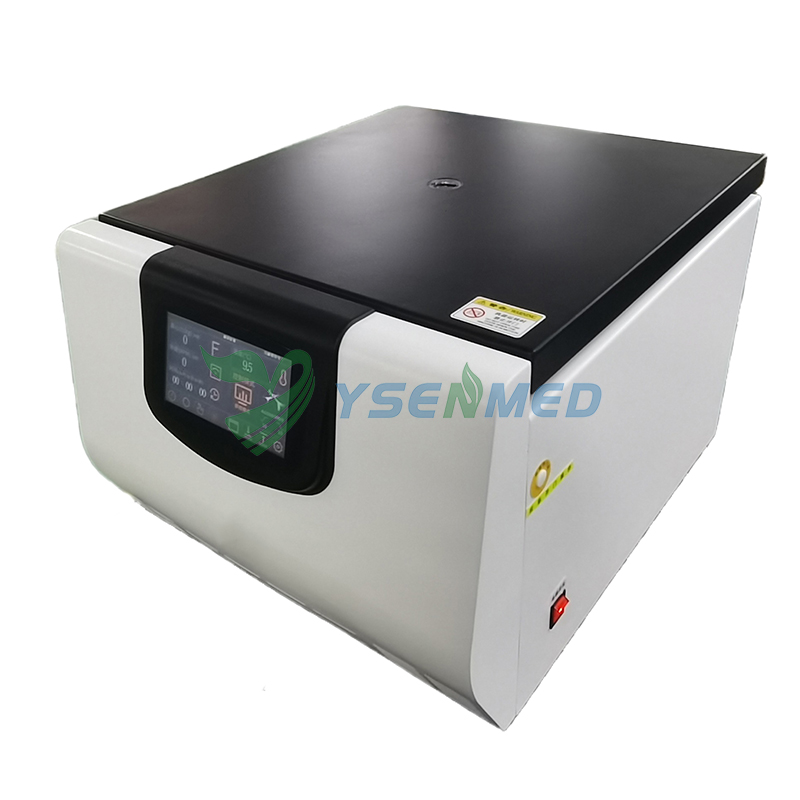

Medical Laboratory Automatic Decapping Centrifuge

Model:YSCF-7105TB
Key features
●The brand-new XIUI3.0 operating system adopts microcomputer control, programmable operation, direct drive of variable frequency brushless motor, and precise speed control.
● 7- inch wide-viewing-angle LCD touchscreen, digital input, simple operation, real-time display of settings and operating parameters; ambient lighting with seven colors to choose from, providing a better user experience; all-steel casing with a corrosion-resistant orange peel textured finish, full lines, and an industrial ergonomic design that combines visual appeal with a sense of security, resulting in high recognition rate.
● It features multiple audible and visual warning protection functions, including overspeed, overtemperature, imbalance, misoperation, overcurrent, and overpressure; the hydrogen-resistant, oil-resistant, acid- and alkali-resistant fluorosilicone rubber sealing ring can work continuously at -55 ~ +200 ℃; the aesthetically pleasing and tightly sealed blister-formed inner door panel provides double protection against aerosol leakage; the 304 stainless steel one-piece seamless molded corrosion-resistant centrifuge chamber and steel cylinder liner, along with the sound-absorbing air duct design, complete with a corrosion-resistant design.
● The door cover uses an electronic door lock, which supports one-button opening of the door cover. The gas spring hydraulic rod makes closing the door cover easy and convenient. The door cover can be opened manually when the machine is stopped or the power is off.
●Optional Bluetooth and Type-C interfaces allow for remote control via a mini-program, facilitating system upgrades and experimental data downloads.
● 10 -speed acceleration / deceleration curves; three-stage damping to ensure smooth sample operation without suspension; can store 99 programs; parameters can be modified during operation without stopping, and current parameters are automatically saved; can be programmed to perform jog, timed, differential, density, and gradient centrifugation functions according to user needs; meets diverse experimental requirements.
●Aerospace-grade forged aluminum rotors ( angle rotors only ) and a variety of polyamide fiber adapters are available, suitable for centrifuge tubes or reagent bottles from 0.2 mL to 750 mL ; can centrifuge various MTP microplates, PCR plates, cell culture plates and deep well plates.
● Patents held: Hersey Network Intelligent Control System ( Software Copyright Registration No. 9873780 ) ; Tabletop Centrifuge Design Patent (ZL 202130605592.0); Centrifuge (ZL 20183030691.0);
● It has passed ISO9001:2015 certification and ISO 13485:2016 certification; and has CFDA registration and production qualifications.
Host technical parameters
Product Model YSCF-7105TB
Maximum capacity 4×750mL
Maximum speed 5500r/min
Maximum relative centrifugal force 4800×g
Speed accuracy ±20r/min (can be customized according to requirements, in multiples of 10)
Control and drive system Microcomputer controlled, maintenance-free high-torque brushless DC motor
Display method 7-inch wide-viewing-angle LCD touchscreen
Operation method Touch control (optional proximity control)
Upshift /Downshift 10th gear acceleration/10th gear deceleration
Timing range 1s-99h59min59s, capable of both continuous and instantaneous centrifugation.
Total power 0.8kW
noise ≤65d B(A)
power supply AC220V 50Hz
weight 63.5kg
External dimensions (length, width, height) 510mm×610mm×405mm
Rotor parameters :
Product Name capacity YSCF-7105TB
rotational speed Centrifugal force
angular rotor 12×10mL 5000 2600
12×15mL 5000 2800
Horizontal rotor 48 × 5mL (plain tube) 4000 2368
48 × 5mL (blood collection tube) 4000 2832
16×15mL 5000 4625
24×15mL 4000 2960
32×15mL 4000 2960
4×50mL 5000 4625
8×50mL 4000 2960
4×100mL 5000 4800
8×100mL 4000 3072
4×250mL 4000 2848
4×500mL 4000 3360
4×750mL 4000 3536
76 × 5mL (blood collection tubes) 4000 3024
124 × 5mL (blood collection tube) 4000 3584
148 × 5mL (blood collection tube) 4000 3520
ELISA plate rotor 2 × 2 × 96 holes 4000 2368
4 × 2 × 96 holes 4000 3008
