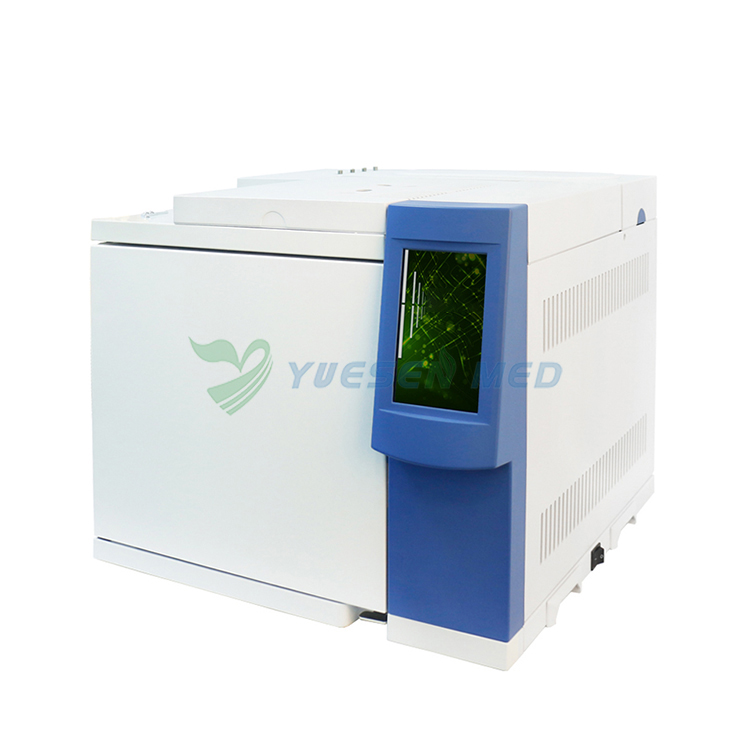

Gas Chromatography Analyzer YSTE-GC112N

Model: YSTE-GC112N
  • ModelYSTE-GC112N
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Chromatograph
    Share:
    Description Get Price Review
    YSTE-GC112N Gas chromatography analyzer is one of widely used analytical instruments. It has become an ideal analytical instrument for separation or analysis in various fields.


    Technical Features
    ● Standard PC control software, built-in chromatographic workstation, achieve PC side reverse control and touch screen synchronous bidirectional control.
    ● 7-inch color touch screen, carrier/hydrogen/air channel flow (pressure) digital display.
    ● Gas shortage alarm protection function; Heating control protection function (when opening the door of the column box, the motor of the column box fan and the heating system will shut down automatically).
    ● Split flow/split ratio can be automatically controlled to save carrier gas.
    ● Configure automatic sampler installation and positioning interface to match automatic sampler of various specifications.
    ● The multi-core, 32-bit embedded hardware system ensures the reliable operation of the instrument.
    ● One-button start function, with 20 groups of sample test mode memory function.
    ● Using logarithmic amplifier, detection signal no cut-off value, good peak shape, extensible synchronous external trigger function, can be started by external signals (automatic sampler, thermal analyzer, etc.) at the same time the host and workstation.
    ● It has perfect system self-check function and fault automatic identification function.
    ● With 8 external event extension function interface, can be selected with various function control valves, and according to their own set time sequence work.
    ● RS232 communication port and LAM network port, and the configuration of data acquisition card.

    Oven
    ● Content product: 22L
    ● Temperature control range: 5℃ ~ 400℃ at room temperature
    ● Temperature control accuracy: ±0.1℃
    ● Heating rate: 0.1 ~ 60℃ / min
    ● Program temperature rise order: 9
    ● Program heating repeatability: ≤ 2%
    ● Cooling way: open the door after
    ● Cooling speed: ≤10 mins (250℃ ~ 50℃)

    Control Software Function
    ● Column temperature box control
    ● Detector control
    ● Injector control
    ● Map display

    Sampler Injector
    ● Temperature control range: 7℃ ~ 420℃ at room temperature
    ● Temperature control method: independent temperature control
    ● Carrier gas flow control mode: constant pressure
    ● Number of simultaneous installations: 3 at most
    ● Type of injection unit: filling column, shunt
    ● Split ratio: split ratio display
    ● Cylinder pressure range: 0 ~ 400kPa
    ● Cylinder pressure control accuracy: 0.1kPa
    ● Flow setting range: H2 0 ~ 200ml / min    N2 0 ~ 150ml / min

    Detector
    ● FID, TCD optional
    ● Temperature control: Max. 420℃
    ● Number of simultaneous installations: 2 at most
    ● Ignition function: automatic
    ● Hydrogen flame ionization detector (FID)
    Detection limit: ≤ 3×10-12 g/s (n-hexadecane)
    Baseline noise: ≤ 5× 10-14A
    Baseline drift: ≤ 6× 10-13A
    Dynamic range: 107
    RSD: 3% or less
    ● Thermal conductivity detector (TCD) :
    Sensitivity: 5000mV•mL/mg (n-cetane)
    Baseline noise: ≤ 0.05 mV
    Baseline drift: ≤ 0.15mV / 30min
    Dynamic range: 105
    ● Supply voltage: AC220V±22V, 50Hz±0.5Hz
    ● Power: 3000W

    Optional
    ● N2000 chromatography workstation
    ● Packed column
    ● Capillary column
