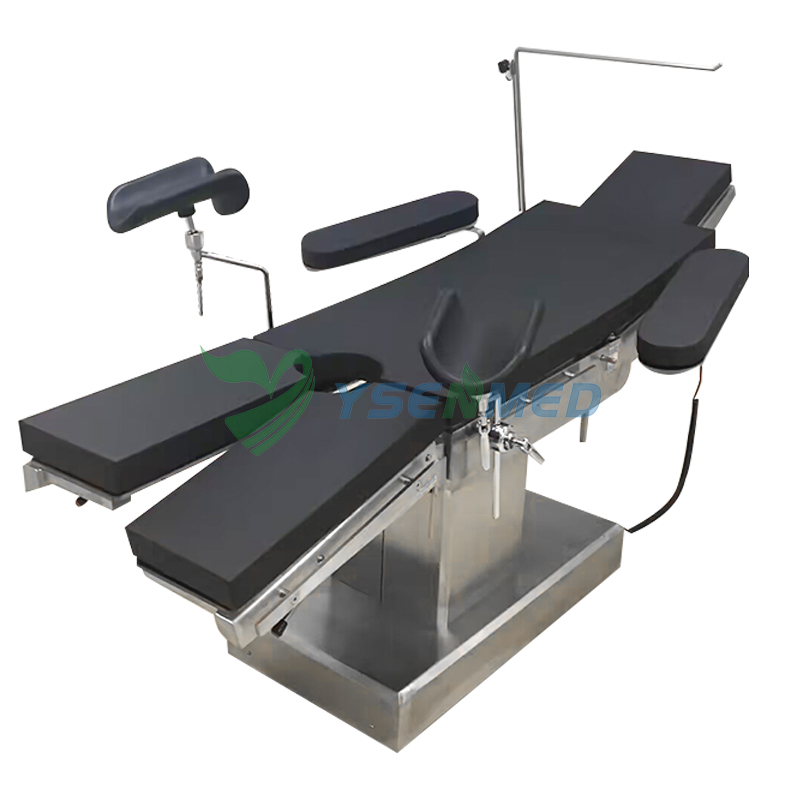

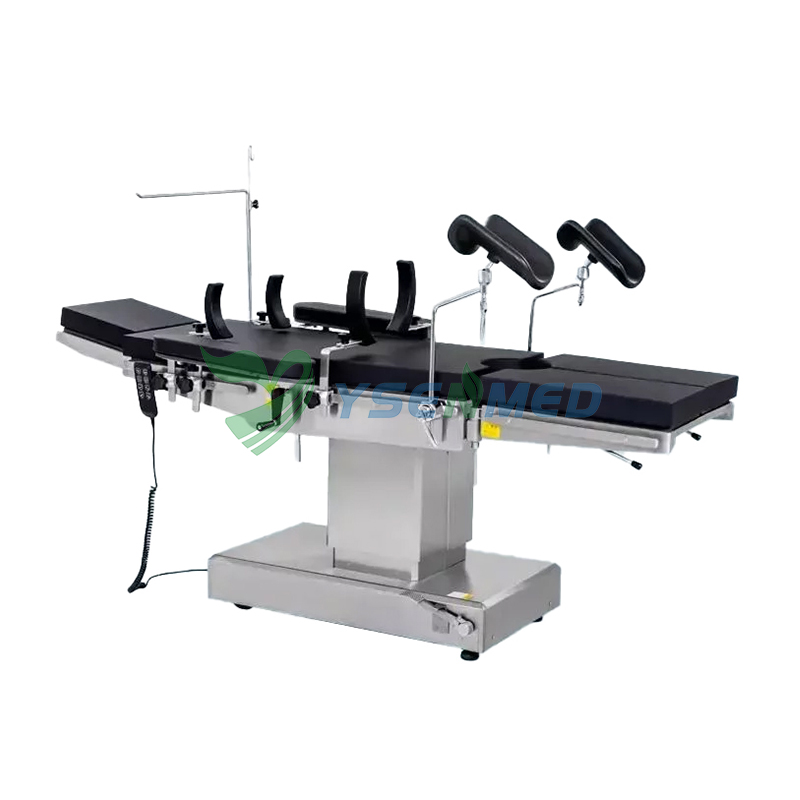

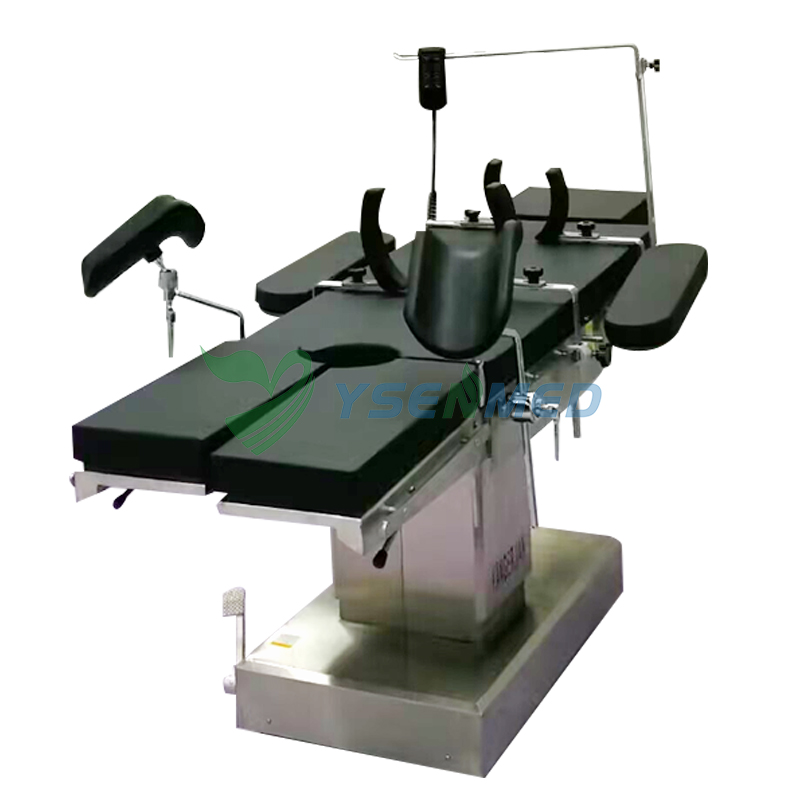

Electric 5-function operation table
Model:YSOT-KJ5D
Technical Parameters
Model YSOT-KJ5D
Table size 2010mm×500mm
Lifting table 1000mm×700mm
Trendelenburg/reverse Trendelenburg≥25°reverse≥20°
Tilt left/Tilt right left≥20°right≥20°
Leg plate adjustment range Downfold ≥90° demountable abduction 180°
Back plate(up/down) up≥75° down≥10°
Head plate(up/down) up≥50°down≥90°demountable
Longitudinal movement Parallel moving≥400mm
Functional characteristics
Electric comprehensive operating table for thoracic, abdominal surgery, brain surgery, ophthalmology, otolaryngology, obstetrics and gynecology, urology, orthopedics and other comprehensive operating table.
This product has unique advantages:
Table lifting, forward and backward leaning, left and right leaning, translation and other main body position adjustment are all realized by key operation and electric push rod transmission.
The table can be moved longitudinally, and can be used with C-arm for X-ray diagnosis or film. The panel is made of high strength amine resin board, and the mattress is made of memory sponge mattress.
Leg plate can be detachable, manual rotation abduction, folding, easy adjustment, very convenient urology surgery.
The handheld manipulator adopts 24V DC voltage, which is easy to operate, safe and reliable.
Parts packing list
Items Quantity/Unit
Operating table 1 set
spongy cushion 1 set
arm support 2 pcs
Leg support 2 pcs
Shoulder support 2pc
Waist support 2pc
square lock 7pc
round lock 2pc
Anesthesia screen frame 1pc
Hand controller 1pc
Power cable 1pc
Certificate of Conformity 1pc
