Biobase Vertical Laminar Flow Cabinet BBS-DSC-M

Model: BBS-DSC-M
  • ModelBBS-DSC-M
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou,China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Biosafety Cabinet
    Share:
    Description Get Price Review

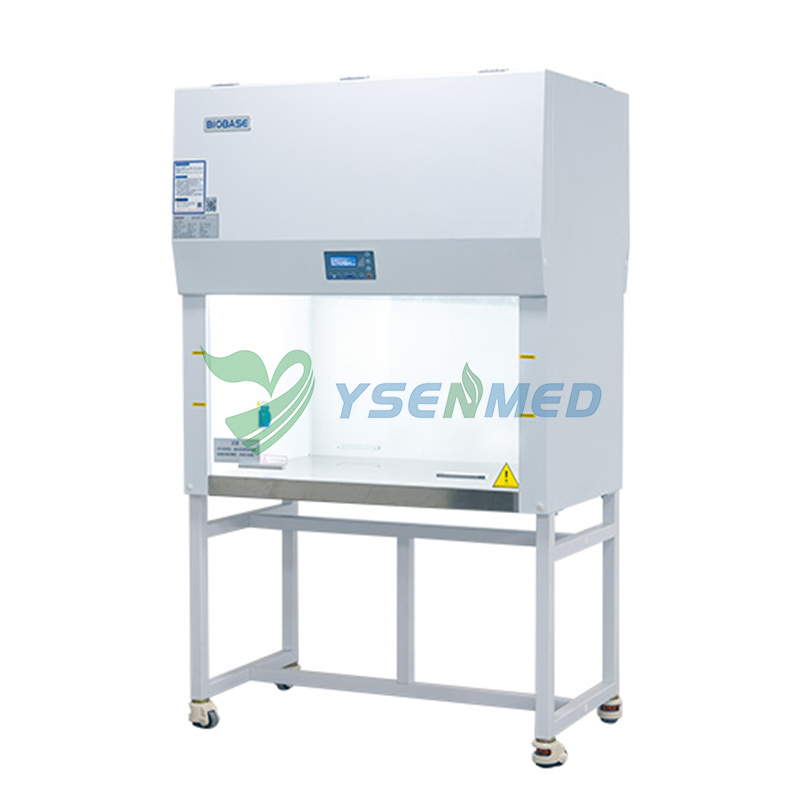

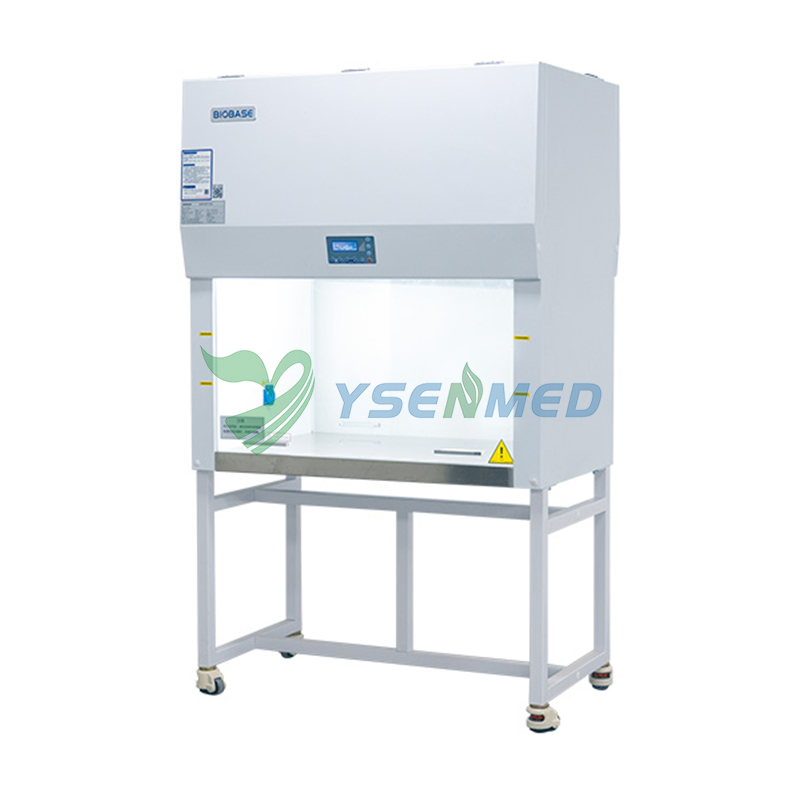

    Biobase Vertical Laminar Flow Cabinet
    Model:BBS-DSC-M
    Introduction:
    The Vertical Laminar Flow Cabinet is an advanced containment solution designed to provide a sterile and particle-free environment for various laboratory applications. This high-performance cabinet combines robust construction with sophisticated features to ensure optimal functionality and operator safety.

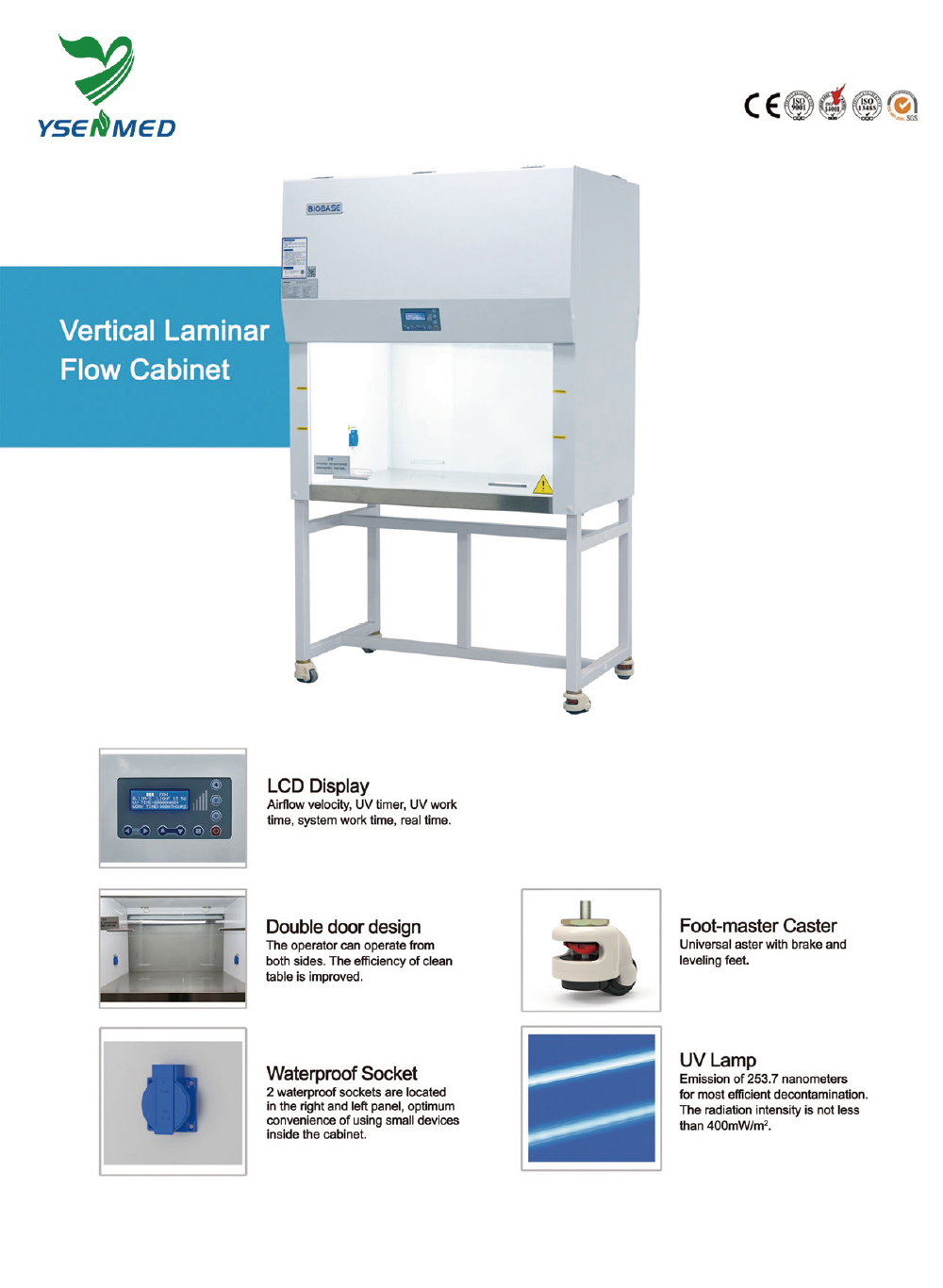

    Features:
    1. Vertical laminar flow, double-sided operation.
    2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.
    3. Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter.
    4. Work zone is made of SUS304 material, beautiful and corrosion resistance.
    5. The front and side Windows are made of 5mm thick tempered glass.
    6. Footmaster casters design, convenient cabinet movement and fixation.
    7. LCD screen,  real-time display of running status (air velocity, timer, UV lamp time,  HEPA filter running time).
    8. With ultraviolet lamp, fan appointment timing function.
    9. Unit conversion function, which switches units between PA and m/s.
    10. The UV lamp is turned on after 5S to protect the safety of the operators.
    11. Perfect alarm system:
    (1) Ultra-high filter pressure alarm
    (2) Filter failure replacement alarm
    (3) Front window opening safe height alarm
    (4) Low wind speed alarm
    12. Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.

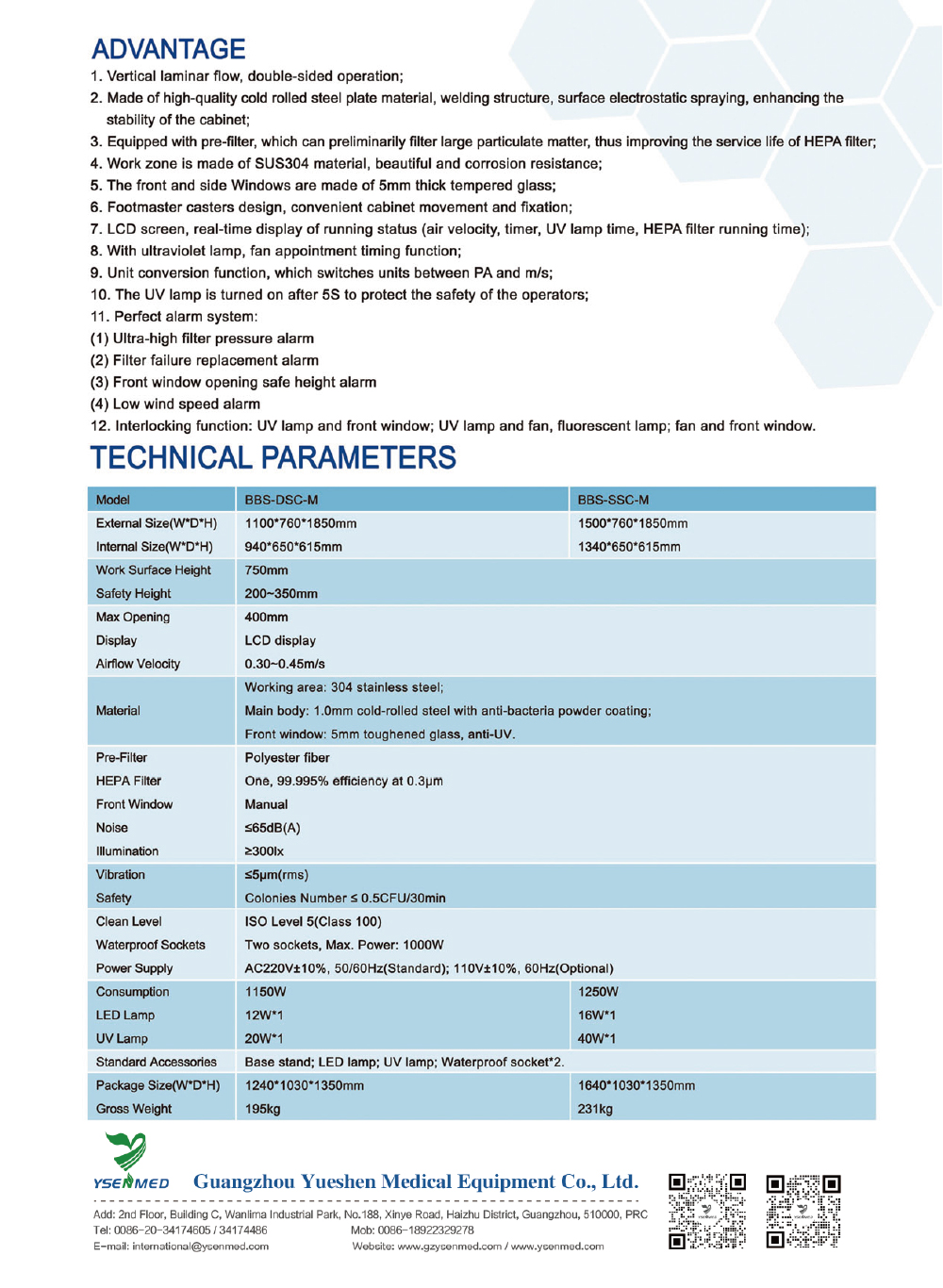

    Technical Parameters:
    Model BBS-DSC-M BBS-SSC-M
    External Size(W*D*H) 1100*760*1850mm 1500*760*1850mm
    Internal Size(W*D*H) 940*650*615mm 1340*650*615mm
    Work Surface Height 750mm
    Safety Height 200~350mm
    Max Opening 400mm
    Display LCD display
    Airflow Velocity 0.30~0.45m/s
    Material Working Area: 304 stainless steel
    Main Body: 1.0mm cold-rolled steel with anti-bacteria powder coating
    Front Window: 5mm toughened glass, anti-UV
    Pre-filter Polyester fiber
    HEPA Filter One, 99.995% efficiency at 0.3μm
    Front Window Manual
    Noise ≤65dB(A)
    Illumination ≥300lx
    Vibration ≤5μm(rms)
    Safety Colonies Number≤0.5CFU/30min
    Clean Level ISO level 5(Class 100)
    Waterproof Sockets Two sockets, Max. Power: 1000W
    Power Supply AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)
    Consumption 1150W 1250W
    LED Lamp 12W*1 16W*1
    UV Lamp 20W*1 40W*1
    Standard Accessories Base stand, LED lamp, UV lamp, Waterproof socket*2
    Package Size(W*D*H) 1240*1030*1350mm 1640*1030*1350mm
    Gross Weight 195kg 231kg
